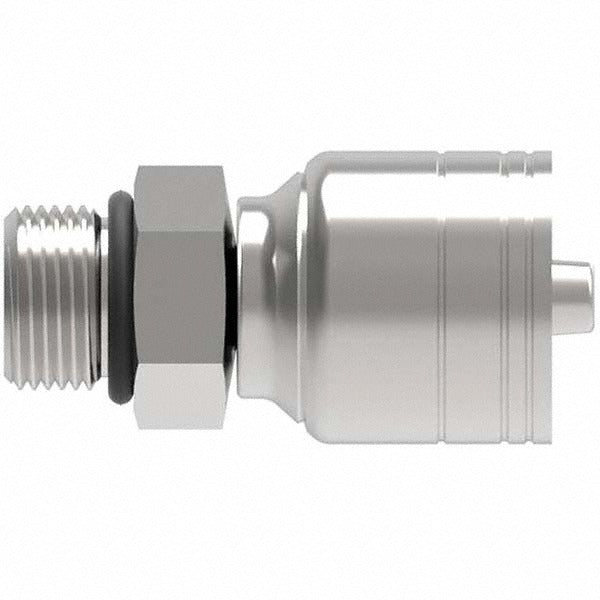

Eaton 06Z-76P-BG Hydraulic Hose Fitting Bspp 90 Elbow

Product Description

The EATON 06Z-76P-BG is a steel hydraulic hose fitting designed for high-pressure fluid-line assemblies. Configured as a BSPP 60-degree cone female 90-degree elbow, it transitions hose lines at a right angle while maintaining a leak-resistant metal-to-metal seat. The fitting accepts a 6 mm hose size with a G 3/8-19 BSPP thread and measures 2.67 inches in length, 2.25 inches in height, and 1.07 inches in width. At 0.21 pounds, it is a compact, lightweight component suited for mobile hydraulic systems, industrial machinery, and fluid-power equipment. Licensed hydraulic technicians and fluid-power specialists are the typical installers.

This fitting is used wherever a directional change is required in a hydraulic hose assembly using BSPP-threaded ports. The 90-degree elbow orientation reduces hose stress and accommodates tight routing in equipment frames, manifolds, and cylinder connections. It is appropriate for residential and commercial hydraulic applications including construction equipment, agricultural machinery, and industrial fluid-power circuits. The G 3/8-19 BSPP thread conforms to the British Standard Pipe Parallel specification, making it a common choice in equipment manufactured to metric and ISO-style port standards.

Key Features

• BSPP 60-degree cone female seat provides a metal-to-metal seal suitable for hydraulic pressure service
• 90-degree elbow configuration reduces hose bending stress and aids routing in confined spaces
• G 3/8-19 BSPP thread size aligns with ISO and metric port standards found on a wide range of hydraulic equipment
• Steel construction delivers strength and resistance to hydraulic-fluid compatibility concerns
• 7/8-inch hex size allows standard wrench installation without specialized tooling
• Compact form factor at 2.67 x 2.25 x 1.07 inches and 0.21 pounds

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using BSPP-threaded ports with a 6 mm hose size and G 3/8-19 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power specialist. Depressurize and fully relieve hydraulic system pressure before removing or installing any hose fitting. Use a calibrated torque wrench and the appropriate open-end or combination wrench on the 7/8-inch hex to avoid distorting the cone seat. Verify thread engagement and inspect the cone seat for nicks or debris before final assembly to ensure a leak-free connection.
