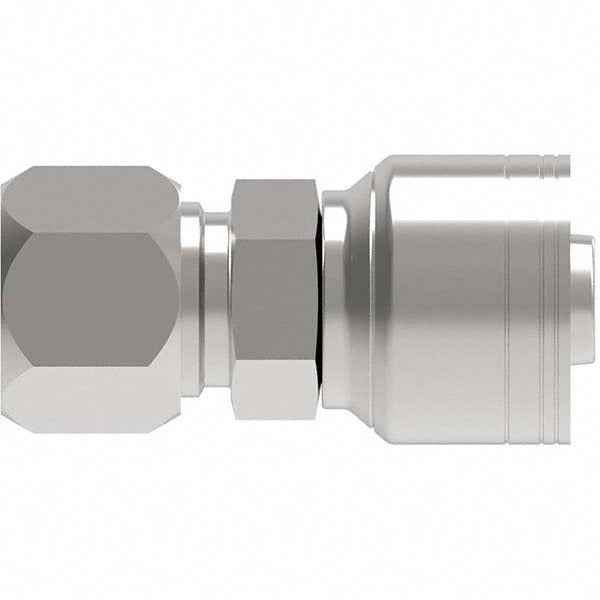

Eaton 06Z-756-BG Flareless Tube Rigid Ermeto Hydraulic Fitting

Product Description

The EATON 06Z-756-BG is a flareless tube rigid fitting from the Ermeto 7000 Series, designed for use in hydraulic hose and tubing assemblies. This fitting accepts a 6 mm hose size with a 9/16-18 UN thread and is constructed from steel for durability in high-pressure hydraulic systems. The rigid Ermeto-style design eliminates the need for flaring, providing a secure and leak-resistant connection. It is installed by hydraulic system technicians and fluid power mechanics working on industrial, mobile, and OEM hydraulic circuits.

This fitting is suited for hydraulic plumbing applications where flareless tube connections are specified. The 7000 Series Ermeto design is commonly found in mobile equipment, industrial machinery, and fluid power systems requiring reliable tube-end terminations. The 9/16-18 UN thread size and 9/16 inch hose diameter make it compatible with standard metric tube configurations in this size range. It ships in single-unit packaging, making it appropriate for repair, maintenance, and replacement work.

Key Features

• Flareless tube rigid design eliminates the need for tube flaring during assembly
• Ermeto 7000 Series construction for use in demanding hydraulic plumbing applications
• Steel construction provides strength and resistance in pressurized fluid systems
• 9/16-18 UN thread for compatibility with standard hydraulic fittings in this size class
• Compact profile: 2.48 inches length, 1.07 inches height, 1.07 inches width
• 11/16 inch hex size allows installation with standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose and tube assemblies specifying Ermeto 7000 Series flareless rigid tube fittings in 6 mm with 9/16-18 UN thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use the correct wrench on the 11/16 inch hex to avoid rounding the fitting. Follow the equipment manufacturer's torque and assembly procedures for Ermeto-style flareless fittings.
