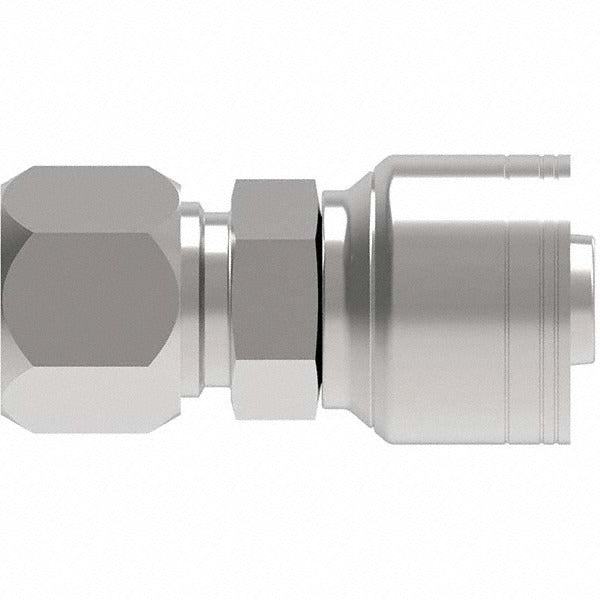

Eaton 06Z-755-BG Flareless Tube Rigid Hydraulic Fitting

Product Description

The EATON 06Z-755-BG is a flareless tube rigid Ermeto 7000 Series hydraulic fitting designed for use in high-pressure hydraulic systems. Manufactured from steel, this fitting accepts a 6 mm hose size with a 1/2-20 UN thread and provides a secure, leak-resistant connection without requiring tube flaring. At 2.45 inches in length and 1.07 inches in both height and width, it is a compact component suited for tight plumbing runs. Licensed plumbers, hydraulic system technicians, and fluid power specialists install this fitting in industrial and mobile hydraulic circuits where reliable tube-end connections are required.

This fitting is intended for use in hydraulic circuits that require flareless bite-type tube connections. The Ermeto 7000 Series design is commonly found in industrial machinery, mobile equipment, and fluid power systems operating at elevated pressures. It accommodates 6 mm tubing and a 1/2-20 UN thread interface, making it appropriate for metric tube runs with unified national thread ports or adapters.

Key Features

• Flareless tube rigid design eliminates the need for tube flaring during assembly
• Ermeto 7000 Series configuration for high-pressure hydraulic service
• Steel construction for durability in demanding fluid power environments
• 6 mm hose size with 1/2-20 UN thread for metric tube and standard thread compatibility
• Compact footprint: 2.45 inches long, 1.07 inches wide, 1.07 inches tall

Compatibility

Designed as an OEM-style replacement fitting for hydraulic systems requiring Ermeto 7000 Series flareless tube rigid connections with a 6 mm tube size and 1/2-20 UN thread specification.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and lock out the hydraulic system fully before removing or installing any fittings. Follow the fitting manufacturer assembly procedure for Ermeto-style flareless fittings, including proper presetting of the ferrule on the tube end prior to final assembly. Consult applicable industry standards and equipment OEM documentation for torque and assembly requirements.
