Eaton 06Z-684-BG Female Jic Swivel 45 Elbow 7/16-20

Product Description

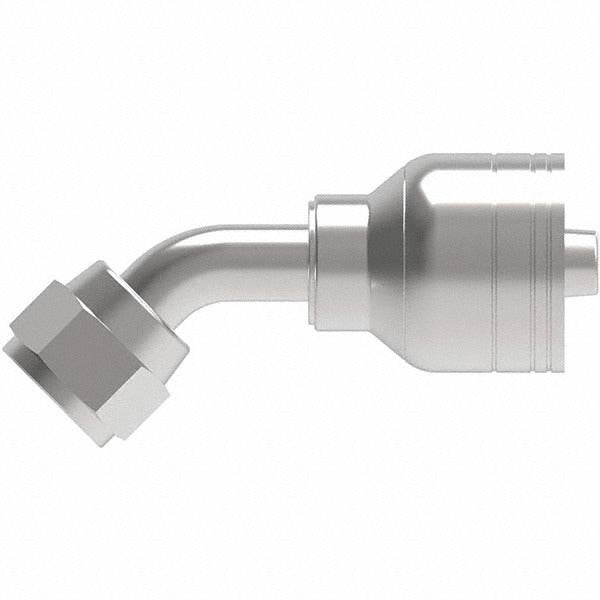

The EATON 06Z-684-BG is a female JIC swivel 45-degree elbow hydraulic hose fitting machined from steel. It connects a hose end to a fixed port at a 45-degree angle, allowing routing flexibility in tight hydraulic plumbing layouts. The fitting uses a JIC 37-degree flare seating surface and a 7/16-20 thread size, with a hex size of 9/16 inches for wrench engagement. Designed for use in fluid power systems, this swivel elbow reduces stress on hose assemblies by accommodating angular misalignment between the hose and the port without twisting the hose body.

This fitting is suited for hydraulic systems found in mobile equipment, industrial machinery, and agricultural applications where hose routing must change direction at 45 degrees. It is typically installed by hydraulic technicians, equipment mechanics, and fluid power specialists assembling or repairing hydraulic lines. The swivel feature allows the hose to be oriented after the fitting is torqued to the port, simplifying assembly in confined spaces.

Key Features

• Female JIC swivel design with 45-degree elbow for angled hose routing
• JIC 37-degree flare seating surface for reliable leak-free connections
• 7/16-20 thread size with 9/16-inch hex for standard wrench installation
• Steel construction for durability in demanding hydraulic service
• Hose size 6 mm with 7/16-inch hose diameter
• Swivel body allows hose orientation adjustment after port assembly

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using JIC 37-degree flare connections with 7/16-20 thread ports and 6 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or equipment mechanic familiar with JIC fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use an appropriately sized wrench on the 9/16-inch hex flats; do not use pipe wrenches or pliers on the fitting body. Verify the JIC flare seat and thread are free of debris and damage before assembly.
