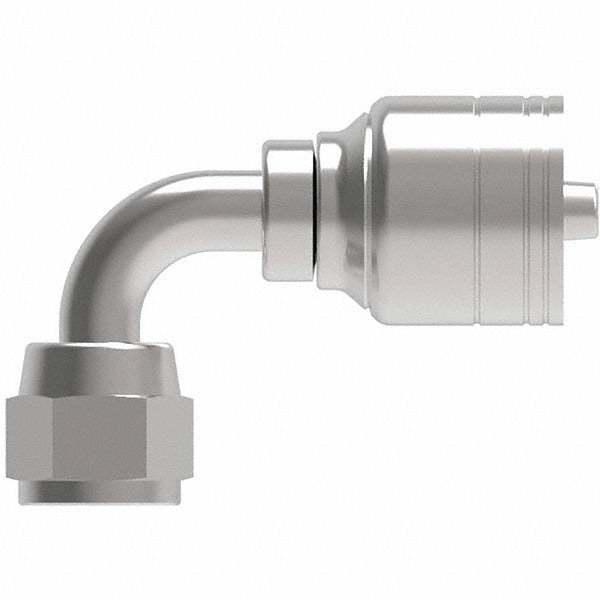

Eaton 06Z-668-BG Female Jic Swivel 90 Elbow 3/4 Inch

Product Description

The EATON 06Z-668-BG is a female JIC swivel 90-degree elbow hydraulic hose fitting machined from steel. It connects hydraulic hose assemblies to ports or components where a right-angle routing path is required, reducing strain on hoses and fittings in tight or angled installation environments. The fitting uses a 3/4-16 thread size and a JIC 37-degree flare seat, which is a widely used standard in hydraulic systems for reliable metal-to-metal sealing. The swivel design allows the fitting to rotate during assembly, making it easier to achieve proper torque without twisting the hose. Licensed hydraulic technicians and fluid-power mechanics install this type of fitting in mobile, industrial, and OEM hydraulic circuits.

This elbow fitting is suited for hydraulic hose assemblies where a 90-degree change in direction is needed at the connection point. It is used in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems. The 6 mm hose size designation and 3/4-inch hose diameter make it appropriate for medium-duty hydraulic circuits. Its steel construction supports use in high-pressure hydraulic lines common in these applications. The swivel end simplifies routing and reduces assembly time in confined plumbing layouts.

Key Features

• Female JIC 37-degree flare seat provides a reliable metal-to-metal seal without additional sealant
• 90-degree elbow configuration reduces hose stress and supports clean routing in tight spaces
• Swivel end rotates during assembly to prevent hose twist and simplify installation
• 3/4-16 thread size conforms to standard JIC fitting specifications
• Steel construction for durability in high-pressure hydraulic service
• Compact profile: approximately 2.89 inches long, 2.07 inches tall, and 1.07 inches wide

Compatibility

Designed as an OEM-style replacement JIC hydraulic hose fitting for use with 3/4-inch hydraulic hose assemblies and 3/4-16 JIC-threaded ports in mobile and industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use the 7/8-inch hex to tighten the fitting to the appropriate port; do not overtighten, as JIC fittings rely on metal-to-metal flare contact and can be damaged by excessive force. Inspect the flare seat and mating port for nicks or damage before assembly.
