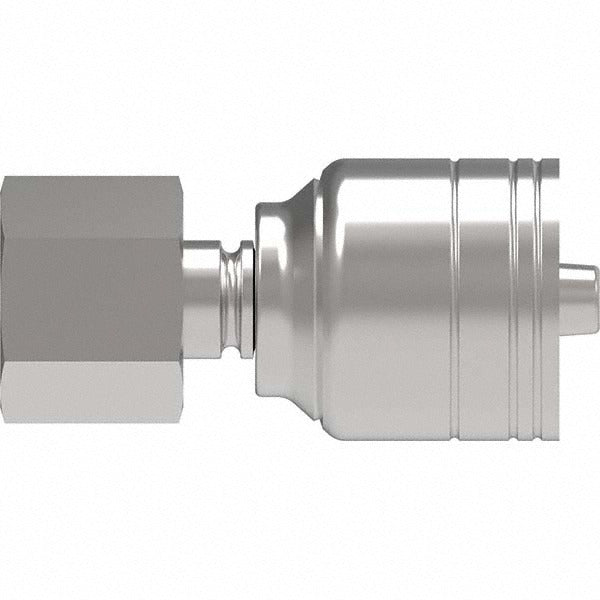

Eaton 06Z-64C-BG Hydraulic Hose Female Swivel Din 24 Fitting

Product Description

The EATON 06Z-64C-BG is a female swivel hydraulic hose fitting manufactured to the DIN 24 degree seat heavy standard. It is designed for use in metric hydraulic systems where a reliable, leak-resistant swivel connection is required at the hose end. Constructed from steel, this fitting accepts a 6 mm hose size with a 19/32-inch hose diameter and features an M22 x 1.50 thread. The swivel design allows the fitting to rotate during installation, reducing hose twist and assembly stress. Industrial maintenance technicians and hydraulic system builders install this type of fitting on mobile equipment, presses, and fluid power circuits.

This fitting is suited for metric hydraulic plumbing applications in industrial and mobile equipment environments. The DIN 24 degree seat heavy configuration provides a robust metal-to-metal sealing interface commonly used in high-pressure hydraulic lines. Its 6 mm hose size designation makes it appropriate for smaller-diameter hydraulic circuits found in compact machinery, attachments, and auxiliary hydraulic systems. The M22 x 1.50 thread pitch is standard in metric hydraulic component assemblies across European and globally manufactured equipment.

Key Features

• Female swivel design reduces hose twist during assembly and routing
• DIN 24 degree seat heavy configuration provides a robust metal-to-metal sealing interface
• M22 x 1.50 metric thread for compatibility with standard metric hydraulic ports
• Steel construction for durability in high-pressure hydraulic service
• 6 mm hose size with 19/32-inch hose diameter
• 1-1/16-inch hex size allows installation with standard wrenches

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems using DIN 24 degree seat heavy female swivel connections with M22 x 1.50 thread and 6 mm hose size.

Installation Notes

This fitting is installed by hydraulic technicians or millwrights familiar with metric hydraulic system assembly. Depressurize and bleed the hydraulic system completely before disconnecting or replacing any hose fitting. Use the 1-1/16-inch hex to torque the fitting with an open-end or combination wrench. Do not over-torque the swivel nut, as this can damage the DIN 24 seat sealing surface.
