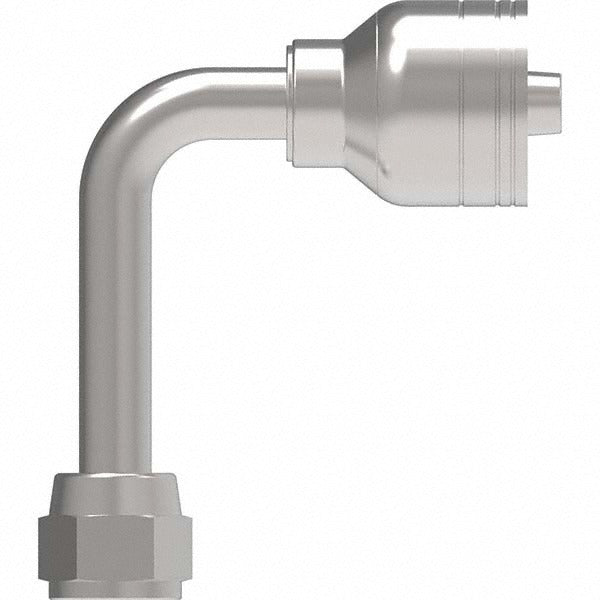

Eaton 06Z-644-BG Jic 37 Female Swivel 90 Elbow 7/16-20

Product Description

The EATON 06Z-644-BG is a JIC 37-degree female swivel 90 long drop elbow fitting designed for hydraulic hose assemblies. It provides a right-angle fluid path with a rotating swivel connection that allows hose alignment without twisting the line under pressure. Constructed from steel, this fitting accepts a 6 mm hose size and uses a 7/16-20 thread. The long drop configuration provides additional clearance where tight routing or panel proximity demands offset geometry. Hydraulic technicians and fluid power mechanics install this fitting when assembling or servicing mobile equipment, industrial machinery, or hydraulic power units requiring JIC-style terminations.

This fitting is suited for hydraulic systems that require a 90-degree directional change at the hose end connection. The female swivel design eliminates the need to rotate the hose body during installation, reducing stress on the hose assembly. It is commonly used in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic circuits where JIC 37-degree flare connections are specified. The long drop variant is selected when additional drop distance is needed to clear mounting surfaces or adjacent components.

Key Features

• JIC 37-degree female swivel end allows hose alignment without twisting the assembly
• 90-degree long drop elbow geometry provides offset routing clearance
• Steel construction for durability in hydraulic service environments
• 7/16-20 thread size compatible with standard JIC 37 fittings and ports
• 6 mm hose size for use with matching hydraulic hose assemblies
• Swivel design simplifies installation and reduces assembly torque on the hose

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a JIC 37-degree female swivel 90 long drop elbow with a 7/16-20 thread and 6 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use a backup wrench on the fitting body to prevent rotation of the hose assembly during tightening. Follow applicable fluid power standards and equipment manufacturer torque guidelines for JIC swivel fittings.
