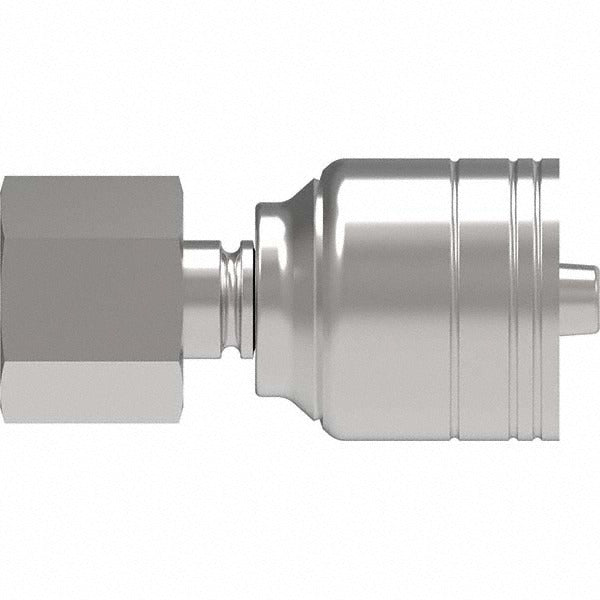

Eaton 06Z-62C-BG Hydraulic Hose Female Swivel Fitting Din 24

Product Description

The EATON 06Z-62C-BG is a female swivel hydraulic hose fitting with a DIN 24 degree seat in a heavy-duty configuration. It is designed for use in metric hydraulic systems requiring a secure, leak-resistant connection at the hose termination point. The fitting is machined from steel and uses an M20 x 1.50 thread size, making it suitable for high-pressure hydraulic lines in industrial and mobile equipment applications. At 0.2 pounds, it is a compact component typically installed by hydraulic technicians and equipment mechanics during hose assembly or system repair.

This fitting is intended for metric hydraulic hose assemblies using a 6 mm hose size, with a hose diameter of 35/64 inches. The heavy DIN 24 seat configuration is common in European-spec mobile machinery, industrial presses, agricultural equipment, and construction equipment hydraulic circuits. The female swivel design allows the fitting to rotate during assembly, reducing hose twist and making installation more manageable in tight spaces.

Key Features

• Female swivel design reduces hose twist during assembly and routing
• DIN 24 degree cone seat provides a reliable, leak-resistant metal-to-metal seal
• Heavy-duty fitting configuration rated for demanding hydraulic system pressures
• M20 x 1.50 metric thread size for compatibility with standard DIN-spec hydraulic ports
• Steel construction for durability in high-pressure hydraulic environments
• 1-3/16 inch hex size compatible with standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement or service fitting for metric hydraulic hose assemblies using a 6 mm hose size with a DIN 24 degree seat port configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system fully before removing or installing any fittings. Use a properly sized open-end or combination wrench on the 1-3/16 inch hex to tighten the fitting — do not use pipe wrenches or adjustable pliers that may damage the hex surfaces. Inspect the DIN 24 seat and mating port for nicks or debris before assembly to ensure a proper seal.
