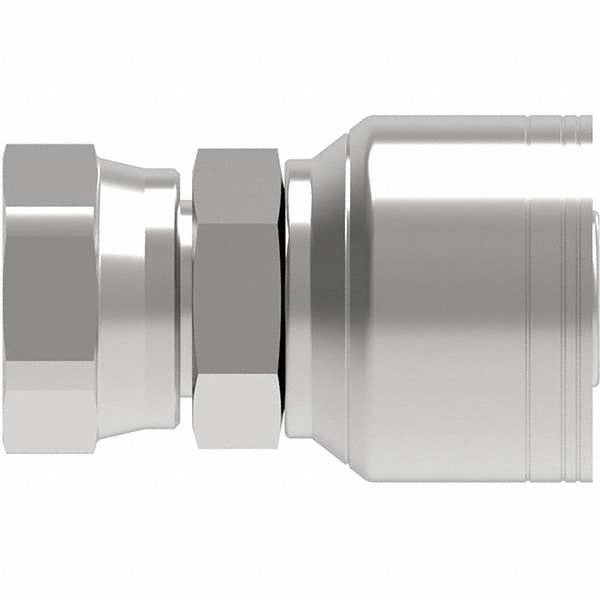

Eaton 06Z-610-BG Sae 37 Jic Swivel Fitting 7/8-14

Product Description

The EATON 06Z-610-BG is a female SAE 37-degree JIC swivel fitting designed for hydraulic hose assemblies. It connects a 6 mm hose to a 7/8-14 threaded port using the JIC 37-degree flare sealing standard, which provides reliable, leak-resistant connections in high-pressure hydraulic systems. Constructed from steel, it delivers the durability required in demanding fluid power applications. This fitting is installed by hydraulic technicians and maintenance mechanics working on mobile equipment, industrial machinery, and fluid power circuits where swivel action simplifies routing and reduces stress on the hose end.

This fitting suits hydraulic hose assemblies in mobile and stationary applications where a female JIC swivel termination is needed. The 7/8-14 thread size is common in mid-range hydraulic circuits found in construction equipment, agricultural machinery, and industrial hydraulic power units. The swivel design allows the fitting body to rotate during installation, reducing hose twist and making alignment to a fixed port straightforward in tight or awkward plumbing runs.

Key Features

• SAE 37-degree JIC flare seating for reliable, metal-to-metal sealing
• Swivel design reduces hose twist during assembly and simplifies port alignment
• 7/8-14 thread size compatible with standard JIC hydraulic ports
• Steel construction for strength and durability in high-pressure hydraulic service
• 6 mm hose size accommodates common small-bore hydraulic hose

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies requiring a female SAE 37-degree JIC end with a 7/8-14 thread and 6 mm hose attachment.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system completely before disconnecting any fittings or hose ends. Inspect the JIC flare seat on the mating port for damage before assembly, and hand-tighten before applying final torque with a wrench to avoid cross-threading. Follow applicable fluid power system standards and equipment manufacturer guidelines for assembly procedures.
