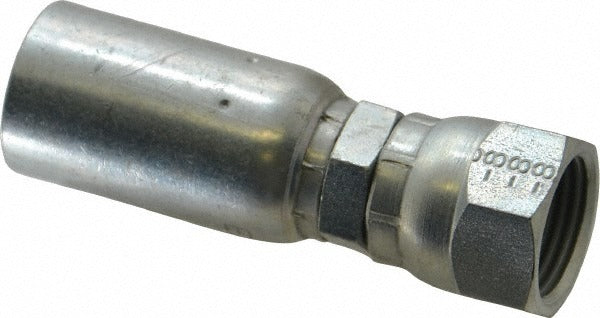

Eaton 06Z-608-BG Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 06Z-608-BG is a female swivel fitting designed for hydraulic hose assemblies in fluid power systems. This straight, threaded fitting accepts hose with a 0.375 inch (3/8 inch) inside diameter and a 0.500 inch outside diameter, with a 3/4-16 thread size and a 7/8 inch hex. Constructed from steel and conforming to SAE J1176, it is built for the pressure and vibration demands of mobile and industrial hydraulic circuits. Installation is handled by hydraulic technicians and fluid power specialists working on equipment-level hose routing and termination.

This fitting is used in hydraulic hose assemblies where a female swivel termination is required at one end of the hose run. The swivel design allows the hose to be tightened to the mating port without twisting the hose body, reducing stress and potential leak paths. It is suited for use in mobile equipment, industrial machinery, and similar hydraulic systems requiring SAE-standard terminations. The Series Z designation indicates fitment to a specific range of EATON hose products.

Key Features

• Female swivel configuration prevents hose twist during installation
• 3/4-16 thread size with 7/8 inch hex for standard wrench fitment
• 0.375 inch (3/8 inch) hose inside diameter, 0.500 inch outside diameter
• Steel construction for durability in hydraulic pressure service
• Straight shape simplifies inline end terminations
• Conforms to SAE J1176 standard

Compatibility

Compatible with EATON hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before disassembling any hose or fitting. Use a backup wrench on the mating port to avoid over-stressing adjacent fittings or tubing. Torque to the fitting manufacturer and system designer specifications; do not over-tighten swivel fittings as this can damage the sealing surface.
