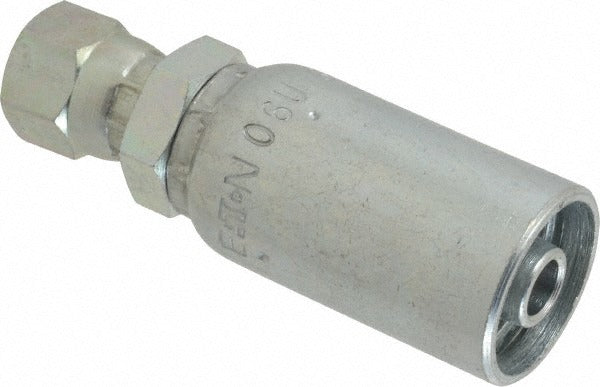

Eaton 06Z-604-BG Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 06Z-604-BG is a straight female swivel fitting designed for hydraulic hose assemblies. It accepts a hose with a 0.375-inch inside diameter and a 0.25-inch outside diameter, corresponding to a 3/8-inch nominal hose size (Size 6). The threaded connection uses a 7/16-20 SAE thread and is manufactured from steel for durability under hydraulic system pressures. This fitting is part of the EATON Z Series and conforms to SAE J1176. It is installed by hydraulic system technicians in fluid power applications requiring a reliable swivel female end connection at the hose terminus.

This fitting is suited for use in mobile hydraulic, industrial fluid power, and equipment maintenance applications where a straight female swivel termination is required. It is compatible with a wide range of EATON hose series and is typically used in equipment service, repair, and original assembly scenarios. The swivel design allows for controlled hose routing without twisting the hose body during installation.

Key Features

• Straight female swivel configuration for flexible hose routing
• 7/16-20 SAE threaded connection conforming to SAE J1176
• 3/8-inch nominal hose inside diameter (0.375 inches), Size 6
• Steel construction for hydraulic service durability
• 11/16-inch hex size for standard wrench installation
• Part of the EATON Z Series SAE fitting line

Compatibility

Compatible with EATON hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and fully relieve hydraulic system pressure before disassembling any fittings or hose connections. Use a calibrated torque wrench sized for the 11/16-inch hex and follow SAE J1176 torque guidelines for the thread size. The swivel body should be held stationary while the hose is positioned to prevent hose twist during makeup.
