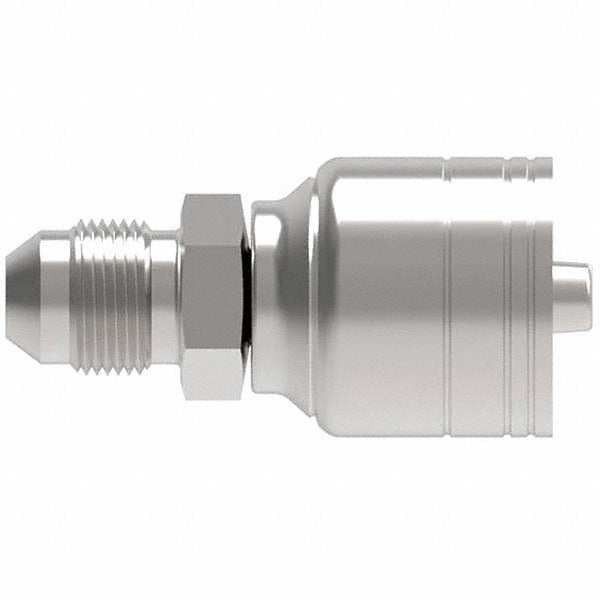

Eaton 06Z-510-BG Male Sae 37 Jic Rigid Fitting 6mm

Product Description

The EATON 06Z-510-BG is a male SAE 37-degree JIC rigid fitting designed for hydraulic hose assemblies. It provides a leak-resistant 37-degree flare connection between a hydraulic hose and a mating JIC female swivel or port. Constructed from steel, this fitting handles the pressure and vibration loads common in mobile and industrial hydraulic circuits. The 7/8-14 UN thread and 6 mm hose size make it a precise-fit component for systems where consistent sealing geometry and thread engagement are critical. Licensed hydraulic system technicians and fluid power specialists are the typical installers.

This fitting is suited for use in mobile equipment, agricultural machinery, industrial hydraulic systems, and other applications that use SAE 37-degree JIC connections. It is intended for rigid-end termination on hose assemblies where the fitting does not swivel after assembly. The 7/8-14 thread size and 15/16-inch hex allow installation with standard open-end or combination wrenches. It is sold individually and is appropriate for repair, field assembly, or replacement of a damaged or worn rigid JIC end fitting.

Key Features

• SAE 37-degree JIC flare seat provides a reliable metal-to-metal seal
• Steel construction for durability under hydraulic pressure and vibration
• 7/8-14 UN thread size for precise mating with standard JIC female connections
• 6 mm hose size with 7/8-inch hose diameter for correct hose-end fitment
• 15/16-inch hex allows use of standard wrenches during installation
• Rigid fitting design — no rotation after assembly

Compatibility

Designed as an OEM-style replacement or new-assembly rigid JIC fitting for hydraulic hose systems using SAE 37-degree JIC connections with a 6 mm hose size and 7/8-14 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Always depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Thread the fitting by hand first to confirm correct thread engagement, then torque to the system specification using two wrenches to avoid transmitting stress into the hose assembly. Inspect the 37-degree flare seat on both the fitting and the mating component for damage before assembly, as a compromised seat will prevent a proper seal.
