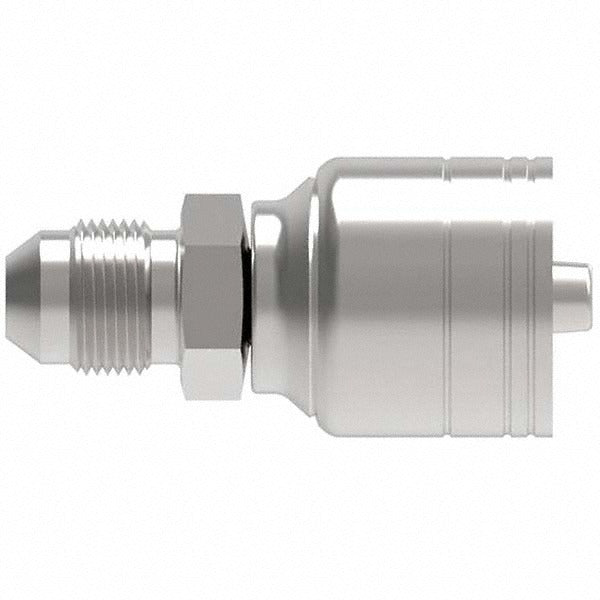

Eaton 06Z-508-BG Male Sae 37 Jic Rigid Hose Fitting

Product Description

The EATON 06Z-508-BG is a male SAE 37-degree JIC rigid hose fitting designed for hydraulic hose assemblies. It features a 3/4-16 thread size and accepts a 6 mm hose size, making it a direct-connect fitting for high-pressure hydraulic lines. Constructed from steel, this fitting delivers the mechanical strength needed in demanding hydraulic systems found in industrial, mobile, and agricultural equipment. The 37-degree flare seating surface creates a metal-to-metal seal that resists vibration loosening and leakage under pressure cycling. Hydraulic technicians and fluid power specialists install this fitting during hose assembly fabrication or field repair.

This fitting is suited for hydraulic hose assemblies requiring a male JIC 37-degree rigid end connection. It is commonly used in mobile hydraulic circuits, industrial machinery, and construction equipment where steel fittings are specified for durability and pressure integrity. The 3/4-16 thread and 13/16-inch hex size are standard dimensions within SAE-compliant hydraulic systems, allowing straightforward integration into existing plumbing circuits.

Key Features

• Male SAE 37-degree JIC flare seating provides a reliable metal-to-metal seal
• Steel construction for high mechanical strength and pressure resistance
• 3/4-16 thread size conforms to SAE straight thread and JIC fitting standards
• 6 mm hose size designation for precise hose-to-fitting compatibility
• 13/16-inch hex size allows use with standard open-end or crow-foot wrenches
• Rigid fitting design prevents hose rotation during assembly and service

Compatibility

Designed as a replacement-style male SAE 37-degree JIC rigid fitting for hydraulic hose assemblies using a 6 mm hose size and 3/4-16 thread connection in SAE-compliant hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Always depressurize and de-energize the hydraulic system before disconnecting or installing fittings. Use the 13/16-inch hex to torque the fitting; do not over-torque, as the 37-degree flare seating surface can deform and compromise the seal. Inspect the flare seating surface and threads for damage before assembly, and follow applicable SAE or equipment manufacturer torque guidelines for JIC fittings.
