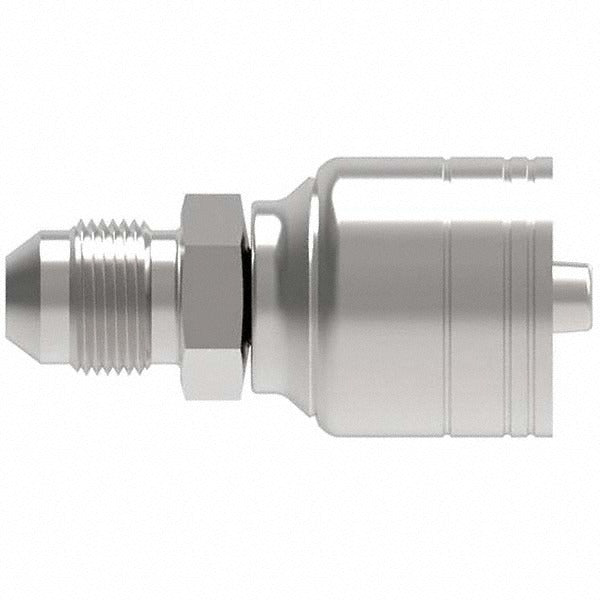

Eaton 06Z-506-BG Male Sae 37 Jic Rigid Fitting 9/16-18

Product Description

The EATON 06Z-506-BG is a male SAE 37-degree JIC rigid hose fitting designed for use in hydraulic fluid conveyance systems. Manufactured from steel, this fitting connects a 6 mm hose to a 9/16-18 threaded port using the standard JIC 37-degree flare seating geometry. The 37-degree flare provides a reliable metal-to-metal seal suited for medium- to high-pressure hydraulic lines. With a 9/16-inch hose diameter and an 11/16-inch hex size, it is sized for straightforward wrench installation. This fitting is used by hydraulic technicians and equipment maintenance professionals working on mobile or industrial hydraulic circuits.

This fitting is appropriate for rigid-connection hydraulic hose assemblies where a male JIC 37-degree thread interface is required. It is commonly installed in mobile equipment, agricultural machinery, industrial hydraulic systems, and anywhere a 6 mm hose terminates at a JIC-ported component. The rigid style is suited for fixed-position assemblies without articulation at the fitting point.

Key Features

• SAE 37-degree JIC flare geometry for reliable metal-to-metal hydraulic seal
• Steel construction for durability in hydraulic service environments
• 9/16-18 thread size compatible with standard JIC female ports
• 11/16-inch hex size for standard wrench installation
• Rigid fitting style for fixed-position hose terminations
• 6 mm hose size with 9/16-inch hose diameter

Compatibility

Designed as an OEM-style replacement rigid male JIC fitting for hydraulic hose assemblies requiring a 6 mm, 9/16-18 SAE 37-degree JIC male connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Use a calibrated torque wrench and follow SAE J514 torque guidelines for JIC fittings of this thread size. Inspect the flare seat and mating female fitting for nicks or contamination before assembly to ensure a proper seal.
