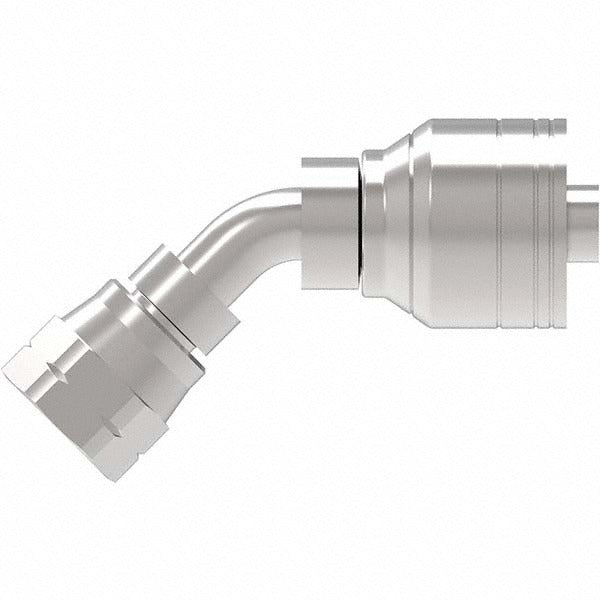

Eaton 06Z-486-BG Sae 45 Female Swivel 45 Elbow Fitting

Product Description

The EATON 06Z-486-BG is a hydraulic hose fitting designed for high-pressure fluid conveyance systems. It features a SAE 45-degree female swivel 45-degree elbow configuration, allowing directional routing of hydraulic lines while maintaining a leak-resistant connection. Constructed from steel, this fitting accepts a 6 mm hose size with a 5/8-18 thread and a 3/4-inch hex for wrench engagement. It is installed by hydraulic system technicians and mechanics working on mobile equipment, industrial machinery, and fluid power assemblies where a compact angled connection is required.

This fitting is suited for hydraulic line assemblies that require a 45-degree elbow transition at the hose termination point. It is commonly used in mobile hydraulic systems on construction, agricultural, and industrial equipment. The female swivel design allows the fitting body to rotate during assembly, reducing hose twist and making routing easier in tight spaces. Technicians installing or replacing hydraulic hose assemblies in OEM or aftermarket applications will find this a standard SAE 45 configuration fitting.

Key Features

• SAE 45-degree female swivel 45-degree elbow configuration for angled hydraulic line routing
• Steel construction for durability in high-pressure hydraulic environments
• 5/8-18 thread size for secure, leak-resistant connection
• 3/4-inch hex size for standard wrench engagement during installation
• Swivel design reduces hose twist during assembly and routing
• 6 mm hose size compatibility for precise fitment

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using SAE 45-degree female swivel configurations with a 5/8-18 thread and 6 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic system completely before removing or installing any fittings. Use a backup wrench on the hex to prevent hose or line twisting during tightening. Do not overtighten steel fittings, as thread damage can result in leaks under system pressure.
