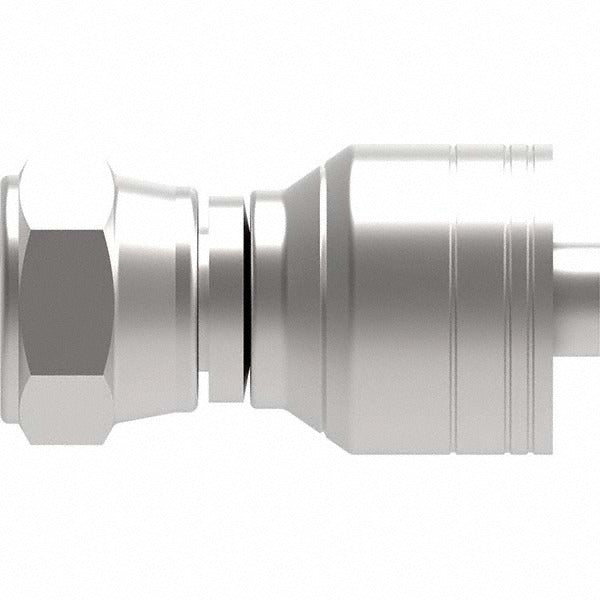

Eaton 06Z-358-BG Bspp 60 Cone Female Swivel Straight Fitting

Product Description

The EATON 06Z-358-BG is a BSPP 60-degree cone female swivel straight hydraulic hose fitting designed for use in high-pressure fluid power systems. Manufactured from steel, this fitting accepts a 6 mm hose size with a G 1/2-14 BSPP thread and features a 1-1/16-inch hex for standard wrench engagement. The swivel design allows the hose to rotate freely during installation, reducing torsional stress on the hose assembly. Licensed hydraulic technicians and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and hydraulic circuit assemblies where leak-free BSPP connections are required.

This fitting is suited for hydraulic systems using BSPP (British Standard Pipe Parallel) ported connections with 60-degree cone seat interfaces. The straight configuration makes it appropriate for in-line hose terminations where a direct port-to-hose connection is needed. It is commonly found in agricultural equipment, construction machinery, and industrial hydraulic circuits requiring a G 1/2-14 threaded port connection. The swivel end accommodates 1/2-inch hose diameter assemblies.

Key Features

• BSPP 60-degree cone female swivel straight configuration for leak-resistant port connections
• G 1/2-14 BSPP thread size for compatibility with standard metric BSPP ported components
• Steel construction for durability in high-pressure hydraulic environments
• Swivel design reduces hose torsion during installation and routing
• 1-1/16-inch hex size allows engagement with standard open-end or combination wrenches
• Compact straight body measuring 2.29 inches in length for space-efficient plumbing

Compatibility

Designed as a replacement-style BSPP 60-degree cone female swivel straight fitting for hydraulic hose assemblies using 6 mm hose size and G 1/2-14 BSPP threaded ports in fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect the cone seat and swivel threads for damage or contamination before assembly. Torque the fitting to the hydraulic system manufacturer's specification for the port size and material being used, and verify there are no leaks before returning the system to service.
