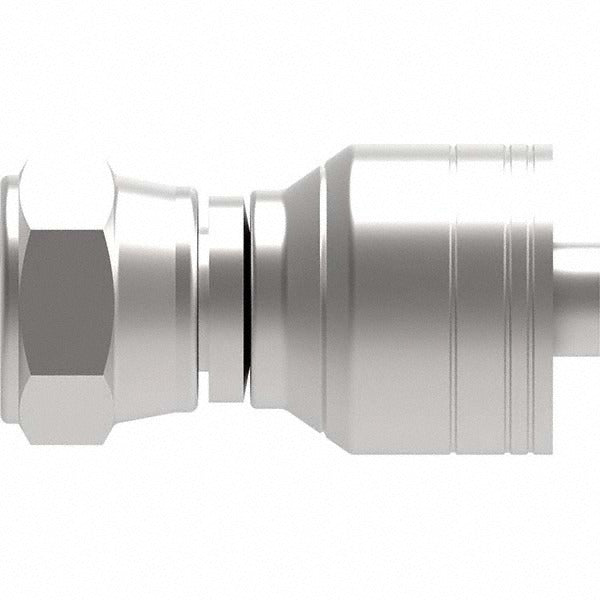

Eaton 06Z-356-BG Bspp Swivel Straight Hydraulic Fitting

Product Description

The EATON 06Z-356-BG is a BSPP 60-degree cone female swivel straight hydraulic hose fitting designed for fluid power systems requiring a leak-resistant, rotatable connection at the hose end. Manufactured from steel, this fitting mates a 6 mm hose end to a G 3/8-19 BSPP port with a 60-degree cone seating surface that provides reliable metal-to-metal sealing under hydraulic pressure. The swivel design allows the hose to be oriented without twisting during final torque, simplifying routing in tight installations. Hydraulic technicians and fluid power mechanics are the primary installers of this component in mobile and industrial hydraulic circuits.

This fitting is suited for use in hydraulic lines on mobile equipment, industrial machinery, and other fluid power assemblies that use BSPP ported components. The straight configuration makes it a direct in-line connection where the hose and port centerlines align. The G 3/8-19 thread designation indicates a British Standard Pipe Parallel thread at 3/8 inch nominal size with 19 threads per inch, common in European and international equipment. The 7/8 inch hex size allows installation with a standard open-end or combination wrench.

Key Features

• BSPP 60-degree cone female swivel end for metal-to-metal sealing at hydraulic ports
• Swivel design prevents hose wind-up during tightening and simplifies routing
• Steel construction for durability in hydraulic fluid environments
• G 3/8-19 BSPP thread size suits internationally threaded hydraulic ports
• 3/8 inch hose diameter with 7/8 inch hex for standard wrench installation

Compatibility

Designed as an OEM-style replacement straight hose fitting for hydraulic systems using BSPP ported components with a 6 mm hose size and G 3/8-19 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and lock out the hydraulic circuit completely before removing or installing any hose fittings. Inspect the cone seating surface and mating port for nicks or debris before assembly. Do not use thread sealant tape on BSPP 60-degree cone fittings, as the cone face provides the primary seal.
