Eaton 06Z-108-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

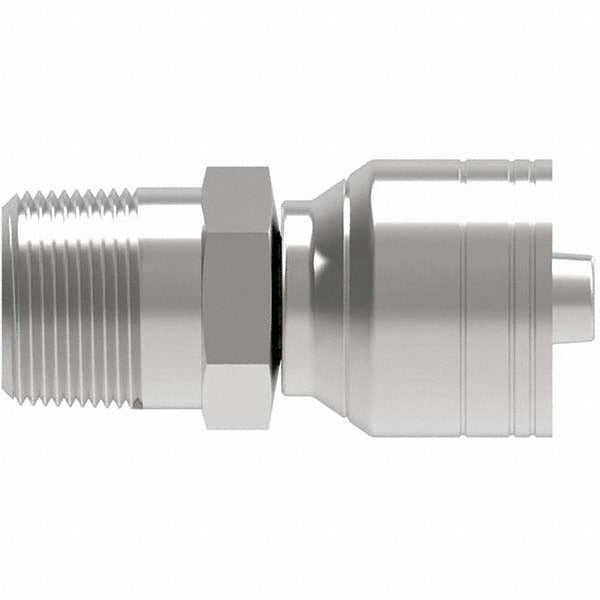

The EATON 06Z-108-BG is a male pipe rigid fitting designed for use with hydraulic hose assemblies in fluid power systems. Built from steel with a straight shape and threaded NPTF connection, this Series Z fitting provides a leak-resistant seal at the hose-to-port interface. It accommodates a hose inside diameter of 0.375 inches and an outside diameter of 0.375 inches, with a thread size of 1/2-14 NPTF and an overall length of 2.27 inches. Licensed hydraulic system technicians and fluid power specialists install this type of fitting in mobile and industrial hydraulic circuits where a secure, rigid male pipe connection is required.

This fitting is suited for use in hydraulic hose assemblies operating across a range of mobile equipment and industrial applications. It is a straight, rigid fitting intended for systems where hose-end connections must terminate at a male pipe thread port. The 1/2-14 NPTF thread is a standard configuration in many hydraulic systems, making this fitting applicable across a broad range of fluid power setups. Per manufacturer specifications, it is for use with compatible hose series listed in the compatibility section below.

Key Features

• Steel construction for durability in hydraulic fluid power environments
• NPTF thread type provides a pressure-tight mechanical seal without sealant on conforming ports
• Straight shape simplifies routing in space-constrained assemblies
• 1/2-14 thread size is a widely used standard in hydraulic port connections
• Meets SAE J1176 standards for hydraulic hose fittings
• Overall length of 2.27 inches suits compact assembly configurations

Compatibility

For use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems specialist. Depressurize and drain the hydraulic circuit fully before removing or installing any fittings. Use the correct hex size of 7/8 inch for torquing the fitting; consult the applicable system service documentation for assembly torque requirements. Inspect hose ends and port threads for damage or contamination before assembly to ensure a proper seal.
