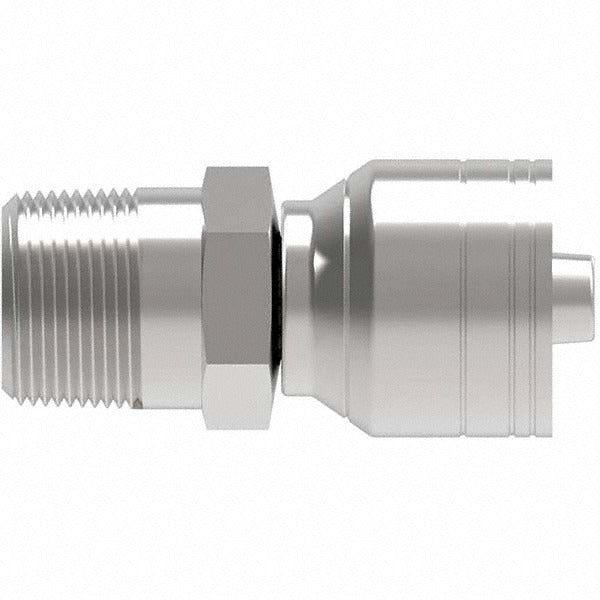

Eaton 06Z-106-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 06Z-106-BG is a male pipe rigid fitting designed for hydraulic hose assemblies in industrial and mobile hydraulic systems. Manufactured from steel with an NPTF threaded connection, this straight fitting accepts hose with a 0.375-inch inside diameter and 0.375-inch outside diameter (hose size 6). The overall installed length is 2.27 inches. The 3/8-18 thread size and 11/16-inch hex make it straightforward to torque with standard open-end or flare-nut wrenches. It meets SAE J1176 standards and belongs to EATON's Z series of hydraulic fittings, making it a direct OEM-style replacement in compatible hose assemblies.

This fitting is suited for hydraulic hose termination in mobile equipment, industrial machinery, and fluid power systems where a rigid male pipe end is required at the hose-to-port connection. It is rated for use with a wide range of EATON hose series and is appropriate for both original equipment assembly and field repair applications performed by hydraulic system technicians and fluid power specialists.

Key Features

• NPTF threaded connection for a pressure-tight, dryseal fit without additional sealant
• Straight (rigid) fitting geometry for direct in-line hose-to-port connections
• Steel construction for durability in high-pressure hydraulic service
• 3/8-18 thread size with 11/16-inch hex for standard wrench installation
• Meets SAE J1176 standards for hydraulic hose fittings
• EATON Z series — designed as a direct OEM replacement component

Compatibility

Specified for use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic system completely before removing any existing fittings or hose assemblies. NPTF dryseal threads are designed to seal on the threads themselves; inspect threads for damage before assembly and follow the fitting manufacturer's recommended assembly procedure for turn-past-finger-tight engagement. Always verify the completed assembly for leaks before returning the system to service.
