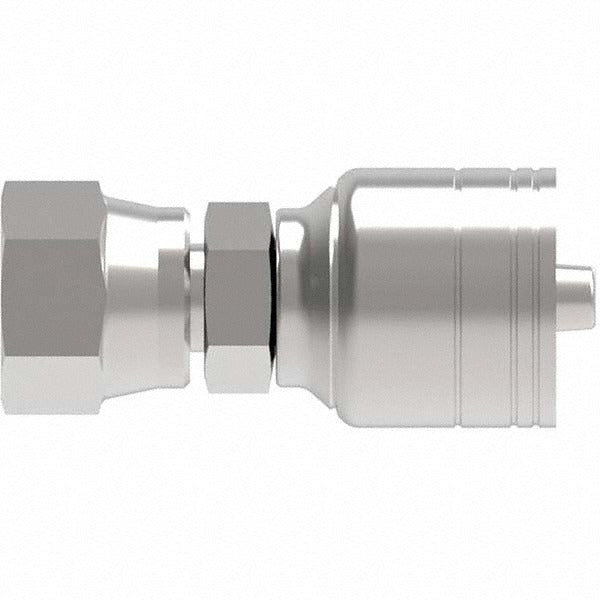

Eaton 06Z-056-BG Female Straight Pipe Swivel Fitting 3/8 in

Product Description

The EATON 06Z-056-BG is a female straight pipe swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. Machined from steel with NPSM threading, this fitting accepts 3/8-inch hose (0.375 inches ID, 0.375 inches OD) and provides a straight, swivel-style connection to threaded ports. The overall assembled length is approximately 1.95 inches, keeping the installation profile compact. Licensed HVAC technicians, plumbers, and hydraulic system mechanics working on mobile or stationary fluid power equipment will find this a direct OEM-style replacement for worn or damaged swivel fittings in field service or shop repair situations.

This fitting is designed for hydraulic hose series applications where a female straight pipe swivel termination is required. It is rated for use with hose size 6 (3/8-inch hose diameter) and conforms to SAE J1176 standards. Typical installations include hydraulic lines on industrial equipment, mobile machinery, and fluid-transfer systems where the swivel design helps relieve torsional stress during assembly. Thread size is 3/8-18 NPSM, making it compatible with corresponding port threads in the supported hose families.

Key Features

• Female straight pipe swivel design reduces hose twist during installation and routing
• Steel construction for durability in hydraulic fluid power applications
• 3/8-18 NPSM thread size provides secure, leak-resistant port connection
• Conforms to SAE J1176 standard for hydraulic hose fittings
• Compact overall length of 1.95 inches suits tight installation envelopes
• Part of the EATON Z Series, designed as OEM-compatible replacement hardware

Compatibility

Designed for use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic systems technician or mechanic familiar with fluid power components. Depressurize and drain the hydraulic system completely before removing or installing any fittings. Use appropriate thread sealant or tape as required by the application and applicable standards. Do not overtighten threaded connections; follow NPSM torque guidelines from the applicable SAE or equipment manufacturer documentation.
