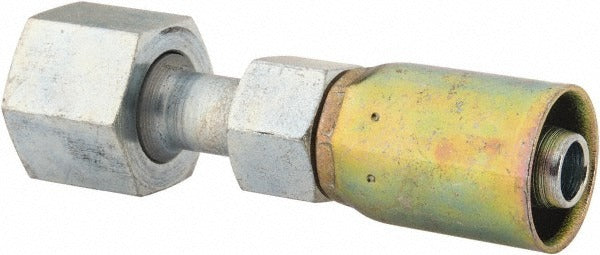

Eaton 06E-S66 Hydraulic Hose Straight Swivel Fitting

Product Description

The EATON 06E-S66 is a straight swivel fitting designed for hydraulic hose assemblies. It connects a 3/8 inch hose to a hydraulic circuit using an 11/16-16 thread. The swivel design allows the fitting to rotate during assembly, reducing hose twist and stress at the connection point. This fitting is installed by hydraulic system technicians and mechanics working on mobile equipment, industrial machinery, and fluid power systems. At 0.16 pounds, it is a compact, single-piece component sized for tight-clearance installations where straight-line routing is required.

This fitting is suited for hydraulic plumbing applications where a straight, non-angled connection is needed between the hose end and a port or component. Common install scenarios include mobile hydraulic equipment, agricultural machinery, construction equipment, and industrial fluid power circuits. The 9/16 inch hex size allows standard wrench engagement for controlled tightening. It ships and is sold as a single unit.

Key Features

• Straight swivel configuration reduces hose twist during installation and service
• 11/16-16 thread size for secure hydraulic port connection
• 3/8 inch hose diameter compatibility for mid-range hydraulic hose assemblies
• 9/16 inch hex provides clean wrench engagement with standard tooling
• Lightweight at 0.16 pounds, suitable for weight-sensitive or tight-clearance applications

Compatibility

Designed as an OEM-style straight swivel fitting for 3/8 inch hydraulic hose assemblies with 11/16-16 threaded connections in fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use a torque wrench with the correct crowfoot or open-end attachment to engage the 9/16 inch hex without damaging the swivel body. Inspect the mating port threads and sealing surfaces for damage before installation, and follow system manufacturer specifications for connection torque and fluid compatibility.
