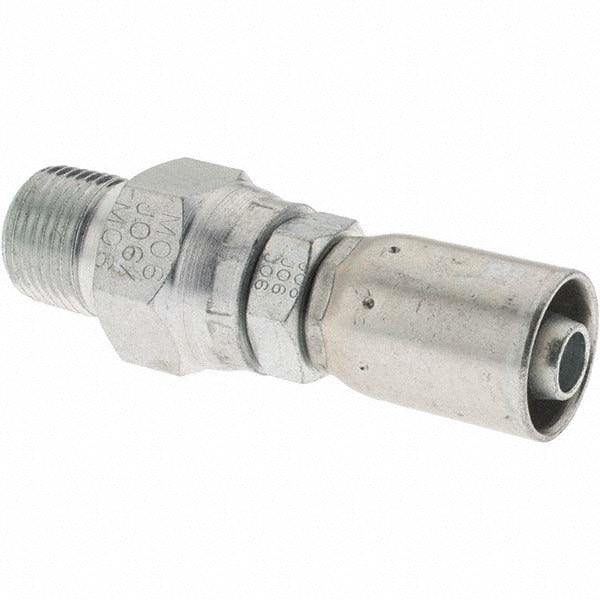

Eaton 06E-J06 Hydraulic Hose Swivel Fitting 3/8 in Mnpt

Product Description

The EATON 06E-J06 is a hydraulic hose swivel fitting designed for use in fluid power systems where rotational movement at the connection point is required. Constructed from steel, this fitting accepts a 3/8-inch hose and features a male NPT (MNPT) thread interface. Swivel fittings like this one allow hose assemblies to rotate freely without twisting or kinking the hose, reducing wear and extending service life. It is installed by hydraulic technicians and fluid power specialists working on mobile equipment, industrial machinery, and related hydraulic circuits.

This fitting is suited for hydraulic plumbing applications that require a reliable, low-profile connection with rotational freedom. The MNPT thread type makes it compatible with standard NPT-ported components including valves, cylinders, pumps, and manifold blocks. Typical use cases include agricultural equipment, construction machinery, and industrial hydraulic power units where hose routing demands flexibility at the termination point.

Key Features

• Swivel design allows hose rotation without twisting, reducing hose fatigue
• Steel construction for durability in high-pressure hydraulic environments
• Male NPT (MNPT) thread for compatibility with standard NPT-ported components
• 3/8-inch hose size for mid-range hydraulic hose assemblies
• Compact form factor suited for tight routing applications

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic swivel fitting for 3/8-inch hose assemblies with MNPT-ported hydraulic components in fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and fully isolate the hydraulic system before removing or installing any fittings to prevent injury from high-pressure fluid release. Use appropriate thread sealant approved for hydraulic service on the MNPT threads, and tighten to the fitting manufacturer's general guidelines for the thread size. Inspect the swivel joint for freedom of rotation and verify there are no leaks before returning the system to service.
