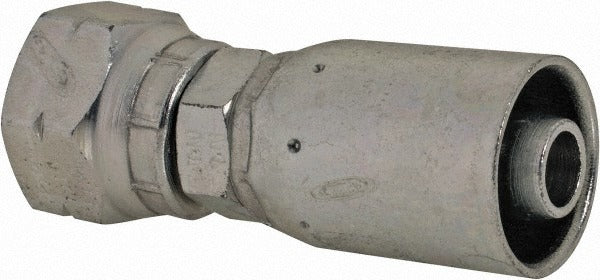

Eaton 06E-406 Hydraulic Hose Female Swivel Fitting 3/8 in

Product Description

The EATON 06E-406 is a female swivel fitting designed for use in hydraulic hose assemblies. It provides a straight, threaded connection point that allows controlled rotation during assembly, reducing hose twist and improving routing flexibility. Built from steel, this fitting seats against SAE-standard interfaces and uses a 5/8-18 thread size. The hose inside diameter is 0.375 inches and the outside diameter is 0.375 inches, matching 3/8-inch hose stock. The 9/16-inch hex size allows installation with standard open-end or combination wrenches. This is a Series E fitting intended for use by hydraulic technicians and industrial service professionals in fluid power applications.

The 06E-406 is suited for mobile equipment, industrial machinery, and hydraulic systems where a straight female swivel end is needed at the hose-to-port or hose-to-component interface. It is compatible with specific Eaton hose series including H009, H209, H243, H265, H275, H277, H285, H435, and H436. The straight shape and SAE shaft type make it a standard choice in hydraulic line fabrication for both new installations and repair work. Package quantity is one fitting per unit.

Key Features

• Female swivel design allows rotation during installation, reducing hose twist
• Steel construction for durability in hydraulic fluid power service
• 5/8-18 SAE thread size for compatibility with standard hydraulic ports
• Straight shape for direct inline hose-to-port connections
• 3/8-inch hose diameter (0.375 inches ID and OD) matches common hydraulic hose stock
• 9/16-inch hex for wrench installation using standard hand tools

Compatibility

Designed for use with Eaton hose series H009, H209, H243, H265, H275, H277, H285, H435, and H436.

Installation Notes

Hydraulic fittings should be installed by qualified hydraulic technicians or fluid power professionals. Depressurize the hydraulic system completely and relieve all stored energy before disconnecting or installing any fitting. Use the correct wrench on the hex flats and avoid over-tightening, which can deform the swivel seat or thread. Inspect threads and sealing surfaces for damage before assembly and verify hose and fitting compatibility prior to pressurizing the system.
