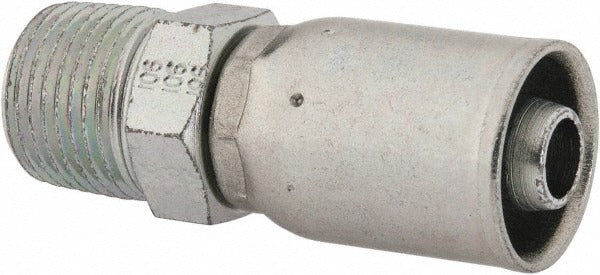

Eaton 06E-106 Hydraulic Hose Fitting Male Pipe Rigid

Product Description

The EATON 06E-106 is a male pipe rigid hydraulic hose fitting designed for straight-run hydraulic connections in fluid power systems. It features a 3/8-18 NPT thread size and accepts a 3/8 inch hose diameter, making it a compact, direct-connect fitting for hydraulic lines that require a fixed, non-swivel termination. The straight configuration suits installations where hose routing runs in line with the port. This fitting is installed by hydraulic system technicians, industrial mechanics, and fluid power specialists working on mobile or stationary hydraulic equipment.

This fitting is suited for use in hydraulic plumbing applications across mobile equipment, industrial machinery, and agricultural equipment. The rigid male pipe design is commonly used where a permanent, non-rotating connection is required at a hydraulic port or component inlet. The 3/8-18 NPT thread mates with standard female pipe ports found on cylinders, valves, pumps, and manifolds. A 11/16 inch hex allows standard wrench engagement during installation and removal.

Key Features

• 3/8-18 NPT male pipe thread for compatibility with standard female pipe hydraulic ports
• Straight rigid configuration eliminates swivel movement for fixed-line plumbing
• 3/8 inch hose diameter accommodates common mid-range hydraulic hose sizes
• 11/16 inch hex provides secure wrench engagement for installation and service
• Compact, low-profile design suited for tight hydraulic plumbing layouts

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 3/8 inch hose with 3/8-18 NPT male pipe rigid straight terminations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any hose fittings. Apply thread sealant appropriate for hydraulic service and torque to the fitting manufacturer's recommended specification. Inspect the mating female port for thread damage or contamination before assembly.
