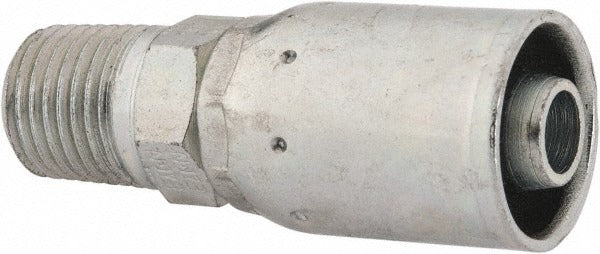

Eaton 06E-104 Male Pipe Rigid Hydraulic Hose Fitting

Product Description

The EATON 06E-104 is a male pipe rigid hydraulic hose fitting designed for straight-connection applications in hydraulic fluid systems. Built from steel and featuring a 1/4-18 NPT threaded shaft, this fitting accepts hose with a 3/8 inch hose diameter and delivers a maximum working pressure of 9,500 psi. The straight configuration and threaded connection type make it well suited for permanent, leak-resistant hose terminations in high-pressure hydraulic circuits. It belongs to EATON Series E and is packaged as a single unit. Hydraulic technicians and fluid power mechanics install this fitting during new system builds and hose assembly replacements.

This fitting is intended for use in industrial and mobile hydraulic systems where a male NPT pipe connection is required at the hose end. It is compatible with specific EATON hose series and is appropriate for applications demanding rated pressure integrity at the hose-to-port interface. The compact, straight geometry suits installations where routing space is limited and a low-profile termination is needed.

Key Features

• Maximum working pressure rated at 9,500 psi for high-pressure hydraulic service
• 1/4-18 NPT threaded shaft for standard pipe-thread port connections
• Straight shape for direct, in-line hose terminations
• Steel construction for durability in demanding hydraulic environments
• 9/16 inch hex size for wrench installation and removal
• Series E designation for compatibility with specified EATON hose families

Compatibility

Specified for use with EATON hose series H009, H209, H243, H265, H275, H277, H285, H435, and H436.

Installation Notes

This fitting is installed by qualified hydraulic technicians or fluid power mechanics. De-pressurize and fully isolate the hydraulic circuit before removing any hose or fitting. Use a calibrated torque wrench and the correct 9/16 inch open-end or combination wrench during assembly; NPT threads are tapered and require thread sealant applied per system requirements. Inspect the hose end for cleanliness and proper cut before assembly to ensure a leak-free connection.
