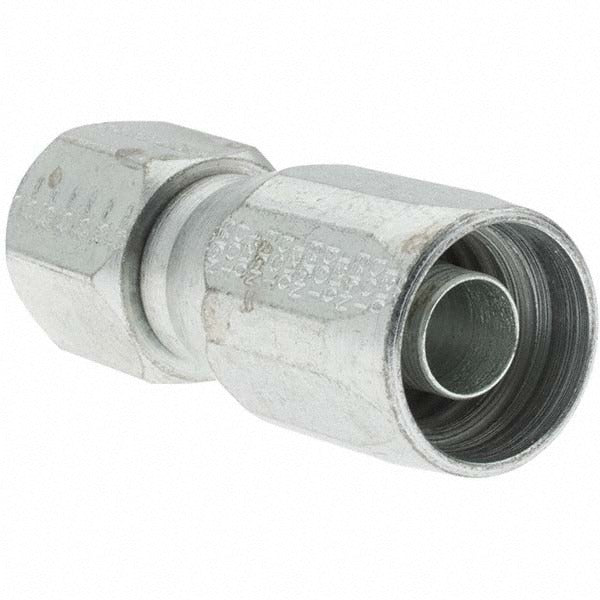

Eaton 06908D-608 Female Swivel Fitting 3/4-16 Jic

Product Description

The EATON 06908D-608 is a reusable female swivel hose fitting designed for JIC (Joint Industry Council) hydraulic and fluid-transfer lines. Constructed from carbon steel, it features a 3/4-16 UNF thread size and accepts a hose with a 13/32-inch inner diameter. The swivel design allows the fitting to rotate during assembly, reducing hose twist and simplifying installation in tight routing situations. This type of fitting is used in hydraulic systems, fluid power circuits, and industrial plumbing lines where a reliable, leak-resistant JIC connection is required. It weighs 0.01 pounds.

This fitting is suited for hydraulic and fluid power applications in both mobile and stationary equipment. The reusable design makes it appropriate for field service and repair work where hose assemblies need to be built or replaced without specialized swaging equipment. Typical installers include hydraulic technicians, industrial maintenance mechanics, and fluid power specialists working on presses, lifts, agricultural equipment, or industrial machinery.

Key Features

• 3/4-16 UNF JIC thread for standard 37-degree flare connections
• Accepts 13/32-inch inner diameter hose without crimping tools
• Carbon steel construction for durability in high-pressure hydraulic service
• Swivel body reduces hose twist during assembly and routing
• Reusable design supports field repair and hose assembly work

Compatibility

Designed as an OEM-style reusable female swivel fitting for hydraulic hose assemblies requiring a 3/4-16 JIC thread connection and a 13/32-inch hose inner diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic circuit fully before removing or installing any fittings. Inspect the JIC 37-degree flare seat on both the fitting and the mating component for damage before assembly. Follow applicable fluid power standards and equipment manufacturer guidelines for assembly procedures and pressure ratings.
