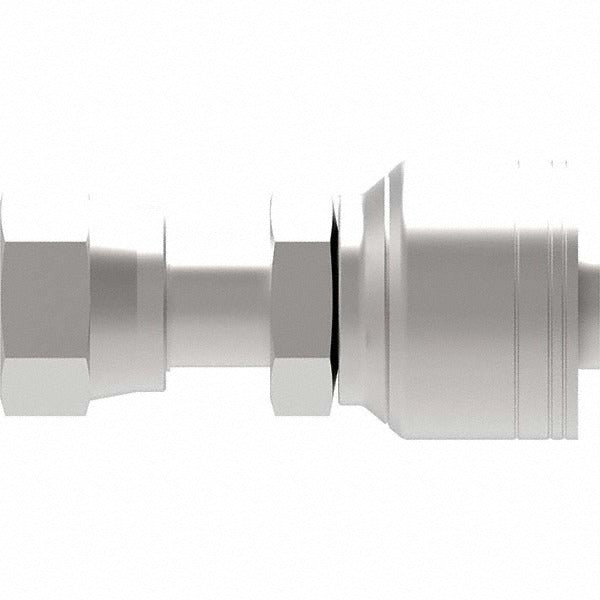

Eaton 04Z-S68-BG Female Ors Swivel Fitting 4mm 13/16-16

Product Description

The EATON 04Z-S68-BG is a female ORS swivel fitting designed for hydraulic hose assemblies requiring a reliable O-ring face seal connection. Constructed from steel, this fitting accepts a 4 mm hose and uses a 13/16-16 thread size with a FOR-SEAL shaft type. The swivel design allows the hose end to rotate during installation, reducing torsional stress on the hose and making routing easier in tight equipment bays. It weighs 0.19 pounds and measures 2.64 inches in length, 1.07 inches in width, and 0.94 inches in height. Hydraulic technicians and fluid power specialists use this fitting in medium- to high-pressure hydraulic systems across mobile and industrial equipment.

This fitting is suited for hydraulic hose assemblies on construction equipment, agricultural machinery, industrial machinery, and other applications where ORS face seal connections are specified. The female ORS swivel end mates with a male ORS port, providing a leak-resistant seal via a captive O-ring rather than relying on thread deformation. It is a direct replacement or service fitting for systems using SAE straight thread O-ring face seal port standards.

Key Features

• Female ORS swivel end provides a leak-resistant O-ring face seal connection
• FOR-SEAL shaft type retains the O-ring for clean, consistent sealing
• Swivel design reduces hose torsion during installation and routing
• Steel construction for durability in hydraulic service environments
• 13/16-16 thread size compatible with SAE ORS port standards
• Compact dimensions: 2.64 inches long, 1.07 inches wide, 0.94 inches high

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 4 mm hose with 13/16-16 female ORS swivel terminations on mobile or industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect the O-ring for damage before assembly and lubricate lightly with clean hydraulic fluid prior to connection. Torque to the equipment or hose assembly manufacturer's specification using appropriate crow-foot or open-end wrenches — do not over-tighten, as ORS fittings seal on the face, not by thread crush.
