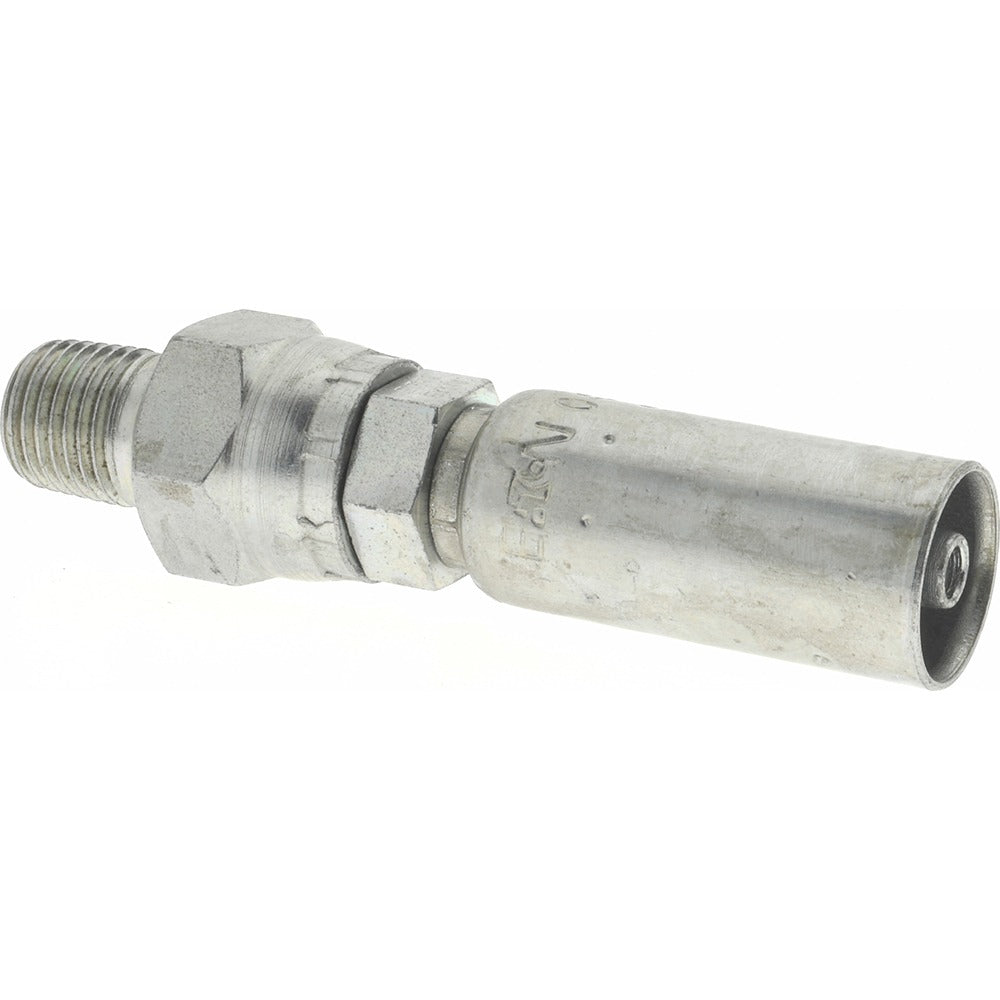

Eaton 04Z-J04-BG Male Pipe Swivel Fitting 1/4 in

Product Description

The EATON 04Z-J04-BG is a straight male pipe swivel fitting designed for hydraulic hose assemblies. Part of the EATON Z Series, it accepts hose with a 0.25 inch inside diameter and a 0.25 inch outside diameter (1/4 inch hose size). The fitting uses a 1/4-18 MPT threaded connection and is constructed from steel for durability in hydraulic service environments. It meets SAE J1176 standards and is installed by hydraulic system technicians and industrial maintenance professionals during hose assembly and repair work.

This fitting is suited for use in hydraulic hose applications where a male pipe swivel connection is required. The straight configuration makes it a direct, in-line connection option. Compatible hose series listed by EATON for this fitting include EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04). It is packaged and sold individually.

Key Features

• Straight male pipe swivel (MPT) configuration for in-line hydraulic hose connections
• 1/4-18 thread size with 5/8 inch hex for standard wrench installation
• Steel construction for hydraulic pressure service
• Meets SAE J1176 standard for hydraulic hose fittings
• EATON Z Series — engineered for compatibility with a broad range of EATON hydraulic hose series

Compatibility

Compatible with EATON hydraulic hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) as specified by the manufacturer.

Installation Notes

This fitting is installed by hydraulic system technicians and industrial maintenance professionals. Always depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any hose fittings. Use the 5/8 inch hex to torque the fitting with an appropriately sized wrench. Follow SAE J1176 assembly guidelines and applicable industry standards when building or servicing hydraulic hose assemblies.
