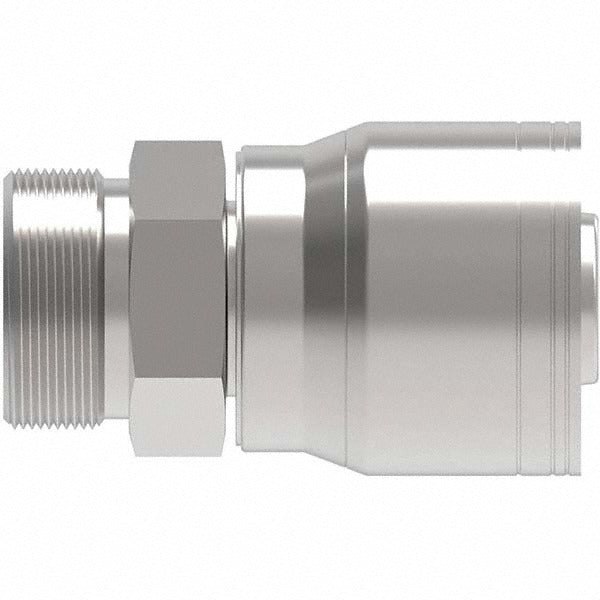

Eaton 04Z-E64-BG Hydraulic Hose Male Rigid Fitting

Product Description

The EATON 04Z-E64-BG is a male rigid fitting designed for hydraulic hose assemblies. It connects a 4 mm hose to a 9/16-18 threaded port using a FOR-SEAL shaft type, which creates a reliable, leak-resistant joint under hydraulic system pressure. Constructed from steel, this fitting is built to handle the demands of industrial and mobile hydraulic circuits. The 5/8-inch hex allows for standard wrench installation. Overall dimensions are 1.78 inches in length and 0.88 inches in both height and width, making it a compact inline connector. Hydraulic system technicians and maintenance professionals working on fluid power assemblies are the primary installers of this fitting.

This fitting is suited for use in hydraulic hose routing applications where a rigid male termination is required at a 9/16-18 port. It is typically found in mobile equipment, industrial machinery, and hydraulic power unit assemblies. The FOR-SEAL shaft type is intended for systems requiring a formed-seal connection style at the hose end. Sold individually, this fitting is a direct replacement component for hydraulic hose repair and assembly work.

Key Features

• Male rigid fitting configuration for secure, non-swivel hydraulic connections
• 4 mm hose size with 9/16-18 thread for precise port matching
• FOR-SEAL shaft type for reliable leak-resistant hose termination
• Steel construction for durability in high-pressure hydraulic environments
• 5/8-inch hex size for installation with standard wrenches
• Compact footprint at 1.78 inches long and 0.88 inches wide

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a 4 mm hose size and 9/16-18 male rigid thread connection with a FOR-SEAL shaft type.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use a calibrated torque wrench and follow the fitting manufacturer or equipment OEM torque specifications for 9/16-18 hydraulic fittings. Inspect the hose end and mating port for damage or contamination before assembly to ensure a proper seal.
