Eaton 04Z-B64-BG Hydraulic Hose Swivel 90 Elbow 7/16-24 Sae

Product Description

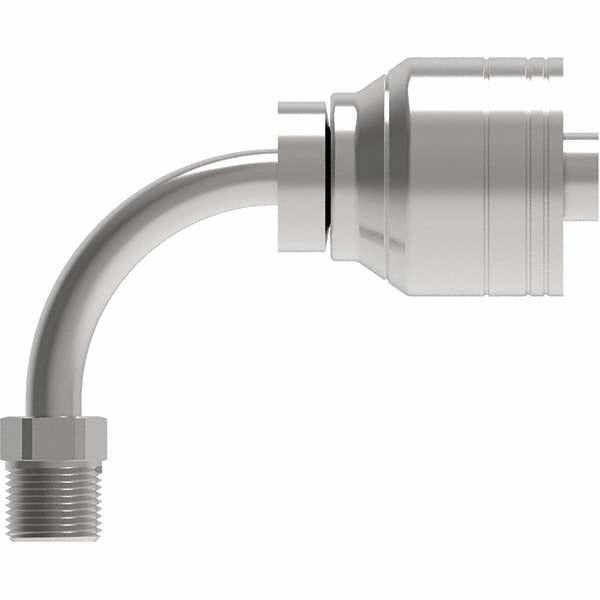

The EATON 04Z-B64-BG is a hydraulic hose fitting configured as an inverted male swivel 90-degree elbow. Manufactured from steel to SAE standards, it accepts a 4 mm hose size with a 7/16-24 thread and a 7/16-inch hose diameter. The 90-degree elbow geometry allows a direction change in tight hydraulic plumbing runs without bending the hose. The swivel design lets the fitting rotate during installation so hose routing can be finalized before the connection is locked down. This fitting is installed by hydraulic system technicians and equipment maintenance professionals working on mobile or industrial hydraulic circuits.

This fitting is suited for hydraulic plumbing applications where a 90-degree transition is required at the hose end and space constraints make a straight fitting impractical. It follows SAE thread and port standards, making it a straightforward replacement or repair component in equipment that uses SAE-spec hydraulic connections. Typical applications include mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems where steel fittings and SAE thread forms are specified.

Key Features

• Inverted male swivel 90-degree elbow configuration for direction changes in tight plumbing runs
• Steel construction for durability in hydraulic system environments
• SAE thread form with 7/16-24 thread size for compatibility with SAE-spec ports
• Swivel design simplifies hose routing and reduces installation torque on the hose assembly
• 4 mm hose size with 7/16-inch hose diameter
• Compact footprint with overall dimensions of 2.54 inches length, 2.13 inches height, and 0.88 inches width

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using SAE 7/16-24 inverted male thread connections in mobile and industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic system technician. Depressurize and lock out the hydraulic system fully before removing or installing any fittings. Inspect mating port threads and sealing surfaces for damage before assembly. Do not overtighten swivel fittings; follow the equipment manufacturer torque specifications for the port type and thread size being serviced.
