Eaton 04Z-A26-BG Hydraulic Hose Fitting 90 Elbow

Product Description

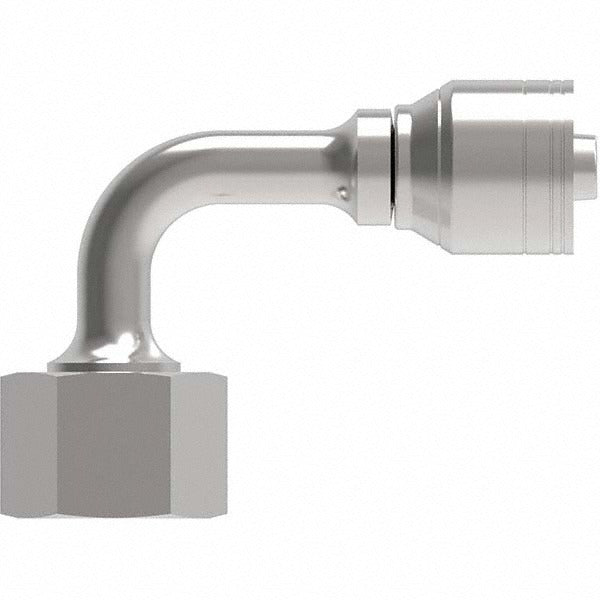

The EATON 04Z-A26-BG is a female ORS swivel short drop 90-degree elbow fitting designed for hydraulic hose assemblies. It accepts a 4 mm hose size and features an 11/16-16 UN thread. Constructed from steel, this fitting provides the mechanical strength needed to handle hydraulic system pressures in demanding service environments. The swivel design allows the hose to be positioned without twisting the line during installation. The short drop geometry keeps routing compact in tight equipment envelopes. This fitting is sold individually and is intended for installation by hydraulic technicians and equipment service professionals.

This fitting is suited for use in mobile hydraulic systems, industrial machinery, construction equipment, and agricultural equipment where a 90-degree hose-to-port transition is required. The female ORS swivel end connects to a male O-ring face seal port, providing a leak-resistant seal well suited for medium- to high-pressure hydraulic circuits. It is a direct replacement or repair fitting used when remaking hose assemblies or replacing worn or damaged fittings in the field or shop.

Key Features

• Female ORS swivel end seals against a male O-ring face seal port for reliable leak resistance
• Short drop 90-degree elbow geometry supports compact hose routing in confined spaces
• 11/16-16 UN thread size for precise fitment to compatible ports
• Steel construction provides durability under hydraulic system pressure and mechanical stress
• Swivel design allows hose orientation adjustment without inducing twist in the hose assembly
• Sold as a single unit, compatible with standard hydraulic hose assembly processes

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for use in hydraulic systems requiring a female ORS swivel short drop 90-degree elbow with a 4 mm hose size and 11/16-16 UN thread connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system completely before removing or installing any fittings. Inspect the O-ring and sealing surfaces for damage before assembly; a damaged or missing O-ring will result in a failed seal. Torque the fitting to the equipment manufacturer's specified value for the thread size and port type.
