Eaton 04Z-A24-BG Female Ors Swivel 90 Elbow Fitting

Product Description

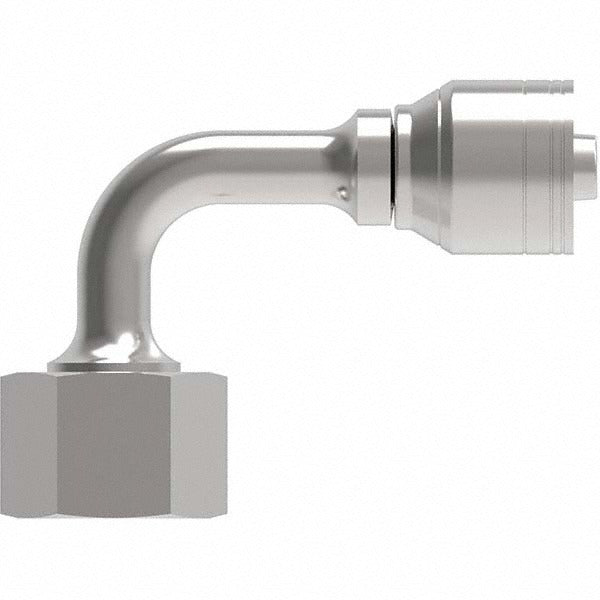

The EATON 04Z-A24-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting machined from steel. It connects a hose end to a hydraulic port at a 90-degree angle, reducing stress on the hose routing in tight or confined installations. The fitting uses an O-ring face seal (ORS) design that creates a leak-resistant metal-to-metal seat combined with an elastomeric O-ring for reliable sealing under pressure. Threaded at 9/16-18 UNF, it accepts a hose size 4 connection and is typically installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals.

This fitting is suited for use in mobile hydraulic systems, industrial machinery, and agricultural equipment where a low-profile 90-degree hose termination is required. The short drop configuration keeps the hose end close to the port face, making it a practical choice in confined equipment bays or frame-mounted valve blocks where a standard elbow would interfere with adjacent components. Sold individually.

Key Features

• Female ORS swivel end provides a leak-resistant O-ring face seal connection
• Short drop 90-degree elbow geometry reduces hose stress in tight routing applications
• 9/16-18 UNF thread size for precise, standardized engagement
• Swivel design allows hose alignment adjustment during installation without twisting the hose
• Steel construction for durability in high-pressure hydraulic service
• Hose size 4 with 9/16-inch hose diameter and 11/16-inch hex

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using size 4 hose with female ORS swivel terminations and 9/16-18 UNF port threads.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Inspect the O-ring seating surface and replace the O-ring if damaged before torquing the fitting. Use the 11/16-inch hex to hold the fitting body and tighten to the system manufacturer's specified torque for the port size — do not over-tighten, as this can damage the O-ring seat or thread engagement.
