Eaton 04Z-74P-BG Hydraulic Hose Fitting Bspp 90 Elbow

Product Description

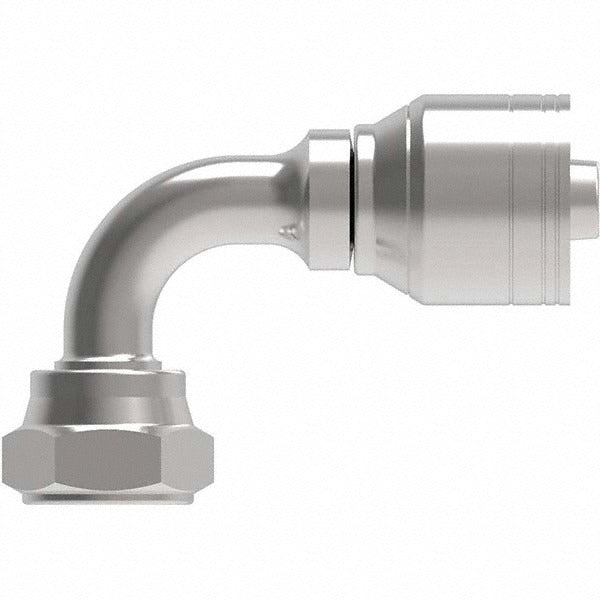

The EATON 04Z-74P-BG is a hydraulic hose fitting designed for high-pressure fluid line connections in industrial and mobile hydraulic systems. This fitting features a BSPP 60-degree cone female end with a 90-degree elbow configuration, allowing directional routing of hydraulic hose assemblies where straight connections are not practical. Constructed from steel, it accepts a 4 mm hose size with a G 1/4-19 thread and a hex size of 43/64 inches. The overall length is 1.8 inches, width is 0.67 inches, and height is 0.98 inches. It is installed by hydraulic system technicians and maintenance professionals working on equipment requiring BSPP-threaded connections.

This fitting is suited for use in hydraulic circuits found in industrial machinery, construction equipment, agricultural equipment, and other mobile or stationary hydraulic power applications. The 90-degree elbow orientation is commonly used where hose routing must change direction close to a component or bulkhead, reducing stress on the hose assembly. The BSPP thread type with a 60-degree cone seating face is standard in many European and international hydraulic systems. This fitting ships in a package quantity of one unit.

Key Features

• BSPP 60-degree cone female thread provides a reliable, leak-resistant seal on compatible hydraulic ports
• 90-degree elbow configuration allows directional hose routing in confined or complex plumbing layouts
• G 1/4-19 thread size matches standard BSPP port fittings in industrial and mobile hydraulic equipment
• Steel construction offers durability and resistance to hydraulic fluid pressure and mechanical stress
• Compact dimensions — 1.8 inches long, 0.98 inches tall, 0.67 inches wide — suits tight installation spaces
• 43/64-inch hex size accommodates standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using BSPP 60-degree cone female connections with a G 1/4-19 thread on 4 mm hose size lines.

Installation Notes

This fitting should be installed by a qualified hydraulic technician familiar with BSPP thread standards and hydraulic system safety. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings. Inspect the seating cone and mating port for damage or contamination before assembly to ensure a proper seal. Consult the equipment manufacturer torque guidelines and applicable hydraulic system codes for final assembly procedures.
