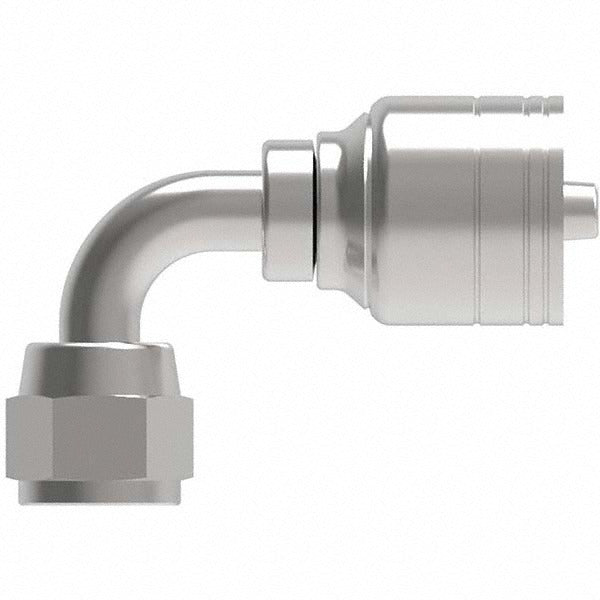

Eaton 04Z-665-BG Female Jic Swivel 90 Elbow 1/2-20

Product Description

The EATON 04Z-665-BG is a female JIC swivel 90-degree elbow hydraulic hose fitting manufactured from steel. It is designed to connect flexible hydraulic hose to a fixed port at a 90-degree angle, reducing stress on the hose and allowing directional routing in tight installations. The fitting features a JIC 37-degree flare seat and a 1/2-20 thread size, conforming to SAE J1176. It accepts hose with a 0.25-inch inside diameter and a 0.31-inch outside diameter. The swivel design allows the hose to be torqued without twisting the hose body. Licensed hydraulic and fluid power technicians handle installation in mobile equipment, industrial machinery, and related hydraulic systems.

This fitting is intended for hydraulic hose assemblies where a 90-degree directional change is required at the connection point. It is part of the Eaton Series Z fitting line and is suited for systems using compatible hose sizes in the 4 mm hose size classification. Per the supplier specifications, this fitting is for use with the following Eaton hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Key Features

• 90-degree elbow configuration for directional hose routing in space-constrained installations
• Female JIC swivel design with JIC 37-degree flare seat per SAE J1176
• 1/2-20 thread size for secure, leak-resistant threaded connection
• Steel construction for durability in hydraulic pressure applications
• Swivel body prevents hose twist during assembly tightening
• Compact overall length of 2.23 inches keeps the assembly profile low

Compatibility

Designed for use with Eaton hydraulic hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04). Part of the Eaton Series Z fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use appropriate open-end or flare-nut wrenches sized to the 5/8-inch hex; do not use pipe wrenches or adjustable pliers on JIC fittings, as they can damage the flare seat. Confirm the JIC 37-degree flare on the mating component is clean and undamaged before final assembly.
