Eaton 04Z-60D-BG Din 24 Seat 90 Female Swivel Hose Fitting

Product Description

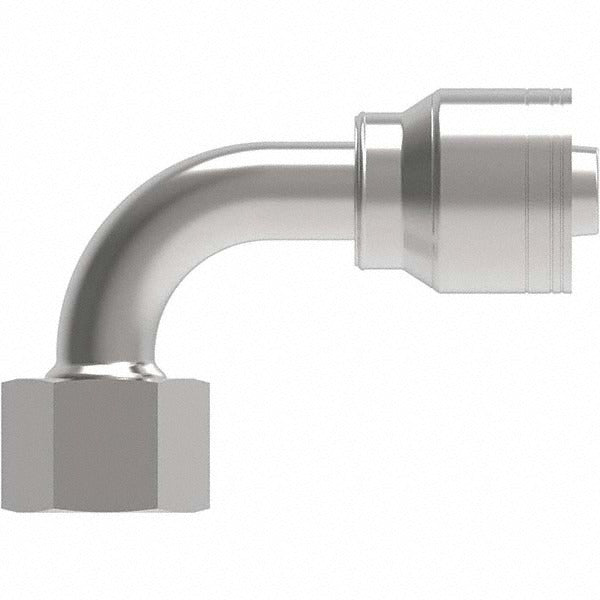

The EATON 04Z-60D-BG is a female swivel DIN 24 seat 90-degree light hydraulic hose fitting designed for metric hydraulic systems. Constructed from steel, this fitting accepts a 4 mm hose size with a 25/64-inch hose diameter and uses an M16 x 1.50 metric thread. The 90-degree angle configuration routes hydraulic lines in tight or confined spaces, while the swivel design allows for rotation during installation to reduce hose strain. This fitting is installed by hydraulic technicians and mechanical tradespeople servicing mobile equipment, industrial machinery, and fluid power systems.

This fitting is suited for light-duty hydraulic circuit assemblies where a DIN 24 cone seat connection is required. It is commonly used in metric hydraulic plumbing on agricultural equipment, construction machinery, and industrial fluid power systems. The 90-degree body geometry makes it well-suited for installations where straight fittings would create excessive hose bend stress or routing conflicts.

Key Features

• Female swivel design allows rotational positioning during assembly to reduce hose twist
• DIN 24 cone seat sealing provides reliable leak-free connection in metric hydraulic circuits
• 90-degree light fitting body for compact, space-constrained routing
• Steel construction for durability in hydraulic fluid environments
• M16 x 1.50 metric thread with 3/4-inch hex for standard wrench installation

Compatibility

Designed as an OEM-style replacement for metric hydraulic hose assemblies requiring a female swivel DIN 24 cone seat 90-degree light fitting with a 4 mm hose size and M16 x 1.50 thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanical tradesperson familiar with fluid power systems. Depressurize and drain the hydraulic circuit fully before removing or installing any fittings. Use an appropriately sized wrench on the 3/4-inch hex flats to torque the fitting without twisting the hose body. Inspect the DIN 24 cone seat surfaces for damage before assembly to ensure a proper seal.
