Eaton 04Z-606-BG Male Sae 37 Jic Rigid Fitting 0.25in Id

Product Description

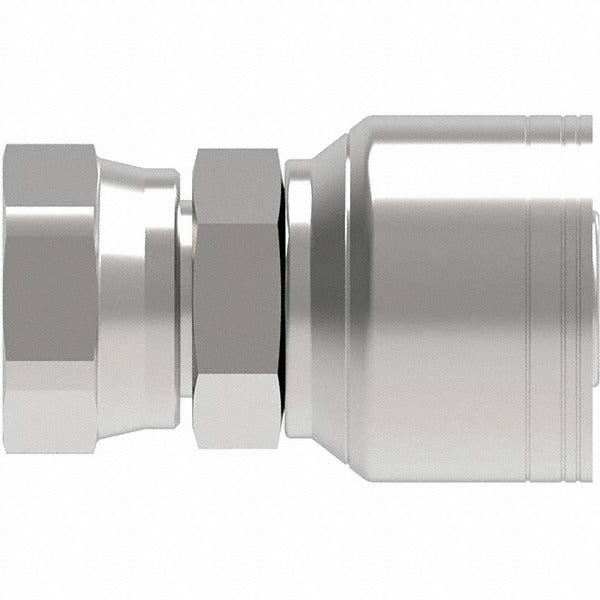

The EATON 04Z-606-BG is a male SAE 37-degree JIC rigid straight fitting designed for use with hydraulic hose assemblies. Manufactured from steel, this threaded fitting accepts hose with a 0.25-inch inside diameter and a 0.375-inch outside diameter, using a 9/16-18 thread size. The straight body profile and JIC 37 flare seat provide a secure, leak-resistant connection in high-pressure hydraulic circuits. With an overall length of 2.03 inches, this Series Z fitting is a direct-replacement component for field repairs and OEM-spec rebuilds. Installation is handled by hydraulic system technicians and industrial maintenance professionals.

This fitting is suited for hydraulic hose applications in mobile equipment, industrial machinery, and fluid power systems. It is specifically designed for use with SAE J1176-compliant hose assemblies where a male JIC 37-degree rigid end connection is required. The 9/16-18 thread mates with standard JIC female swivel ends. Compatible hose series from EATON include EC110, EC115, EC118, EC210, EC215, H0105, H0106, H104, H115, H116, H145, H145R, H1571, H1776, H1777, H1812, H190, H190H, and H1981 among others as specified by the manufacturer.

Key Features

• Male SAE 37-degree JIC flare seat for leak-resistant hydraulic connections
• Steel construction for durability in high-pressure fluid power applications
• Straight rigid body with 9/16-18 threaded connection
• 0.25-inch hose ID and 0.375-inch hose OD compatibility
• Complies with SAE J1176 standard
• Compact 2.03-inch overall length suits tight routing applications

Compatibility

Designed for use with EATON hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) as specified by the manufacturer. Conforms to SAE J1176.

Installation Notes

Installation is performed by qualified hydraulic technicians or industrial maintenance personnel. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use proper hydraulic assembly tooling and follow SAE J1176 torque and assembly guidelines for JIC 37-degree flare fittings. Inspect the flare seat and mating swivel for damage or contamination before assembly to ensure a leak-free joint.
