Eaton 04Z-605-BG Hydraulic Hose Female Swivel Fitting

Product Description

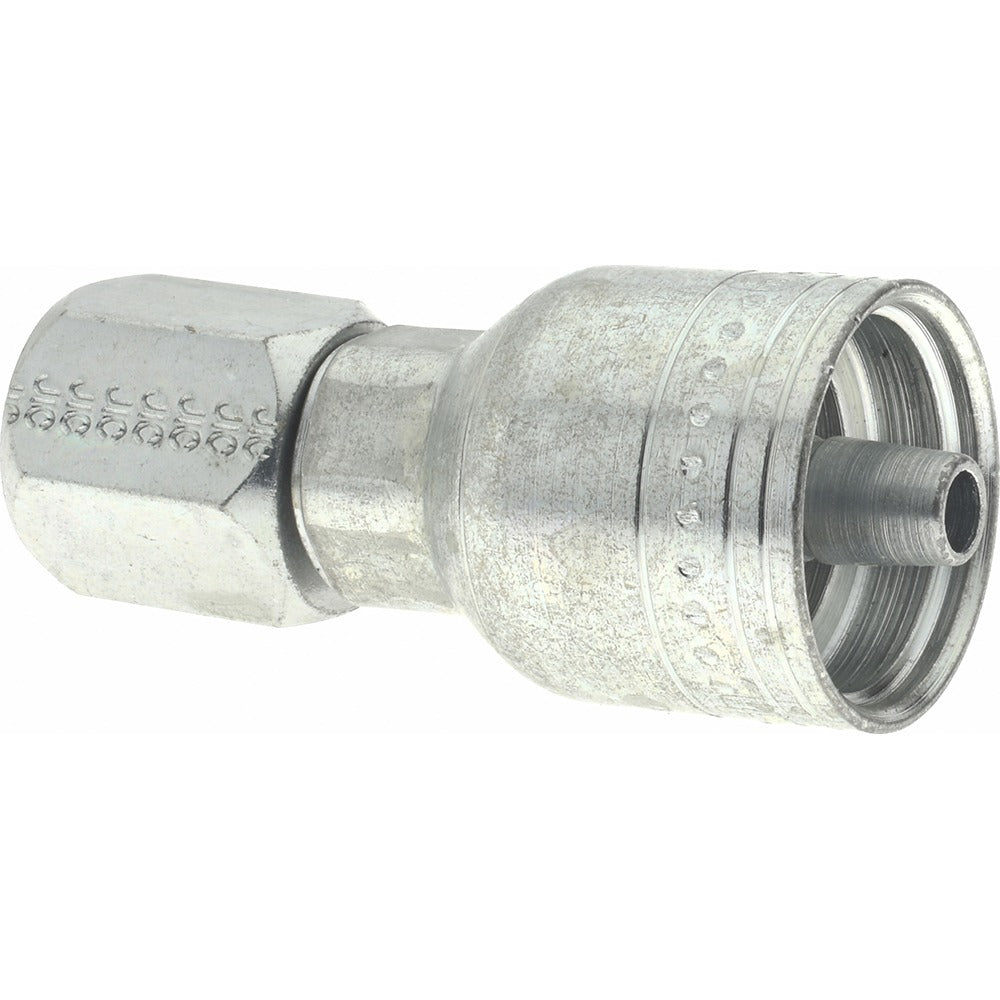

The EATON 04Z-605-BG is a female swivel fitting designed for hydraulic hose assemblies in fluid power systems. It features a straight, threaded connection type with a 1/2-20 thread size and is machined from steel for durability in demanding hydraulic applications. The fitting accommodates a hose with a 0.25-inch inside diameter and a 0.31-inch outside diameter, corresponding to a hose size of 4. Built to SAE J1176 standards, this fitting is part of the EATON Z Series and is installed by hydraulic system technicians and fluid power specialists in both mobile and industrial equipment environments.

This fitting is suited for use in hydraulic hose assemblies where a female swivel end is required on a straight-run connection. It is compatible with a range of EATON hydraulic hose series used in mobile equipment, industrial machinery, and fluid power circuits. The SAE shaft type and 9/16-inch hex size allow for straightforward installation and torque with standard wrenches. The swivel design reduces hose twist during assembly, making routing in tight or angled installations more manageable.

Key Features

• Female swivel fitting with straight geometry for in-line hydraulic hose connections
• Hose inside diameter of 0.25 inches and outside diameter of 0.31 inches (hose size 4)
• 1/2-20 thread size with SAE shaft type
• 9/16-inch hex size for wrench engagement
• Steel construction for pressure resistance and durability
• Meets SAE J1176 standards
• Part of the EATON Z Series fitting family

Compatibility

Compatible with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system fully before disconnecting or assembling any fittings. Use a calibrated torque wrench and follow applicable SAE torque guidelines for the thread size and material. Inspect all mating surfaces and hose ends for damage or contamination before completing the assembly.
