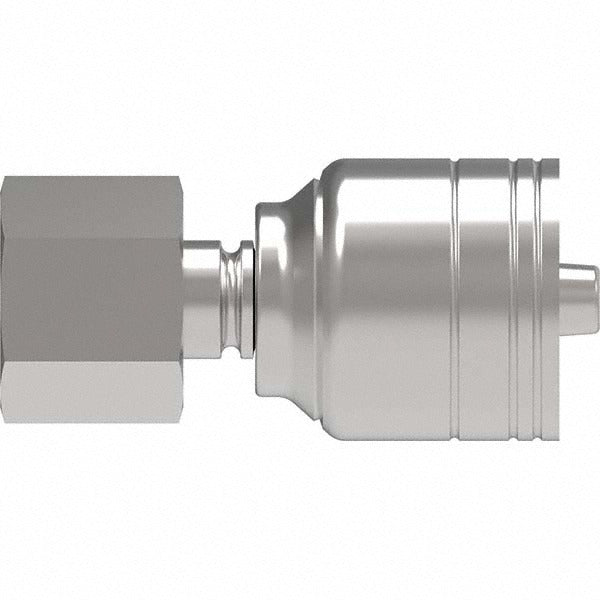

Eaton 04Z-58C-BG Hydraulic Hose Female Swivel Din 24 Fitting

Product Description

The EATON 04Z-58C-BG is a female swivel DIN 24 seat heavy hydraulic hose fitting designed for metric hydraulic systems. Constructed from steel, this fitting connects a 4 mm hose to a threaded port using an M16 x 1.50 metric thread. The swivel design allows the fitting body to rotate during installation, reducing hose twist and making assembly easier in tight spaces. A 3/4 inch hex provides a standard wrench flat for proper torque application. This type of fitting is installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance personnel working on metric hydraulic plumbing.

This fitting is suited for metric hydraulic hose assemblies in industrial and mobile equipment applications. The DIN 24 seat geometry provides a reliable metal-to-metal seal at the port interface. With a hose diameter of 25/64 inches, it is appropriate for compact, low-flow hydraulic circuits found in agricultural machinery, construction equipment, and industrial hydraulic power units where metric plumbing standards are observed.

Key Features

• Female swivel DIN 24 seat design reduces hose twist during assembly
• Steel construction for durability in hydraulic service environments
• M16 x 1.50 metric thread for compatibility with DIN-standard ports
• 3/4 inch hex flat for wrench access during installation
• Hose diameter of 25/64 inches fits compact metric hydraulic hose
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems using DIN 24 seat heavy-series port connections with M16 x 1.50 thread and 4 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and drain the hydraulic system fully before disconnecting or replacing any fitting. Use the hex flat with an appropriate open-end or combination wrench — do not use pliers or pipe wrenches on the hex surfaces. Inspect the DIN 24 seat contact surface for damage before assembly to ensure a leak-free seal.
