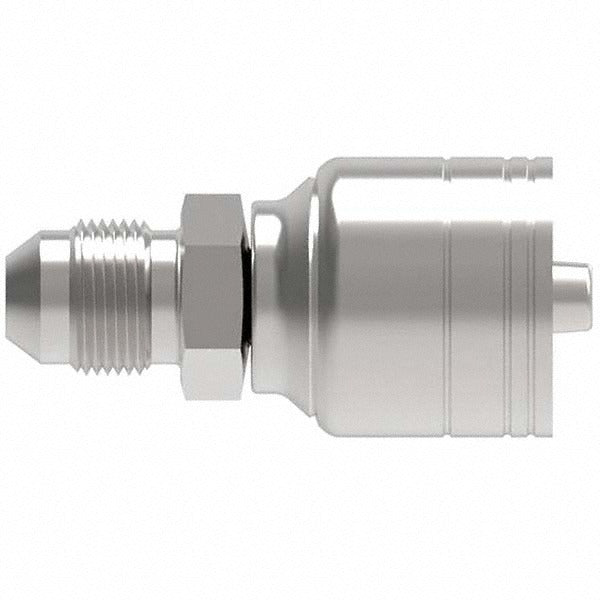

Eaton 04Z-505-BG Hydraulic Hose Jic Fitting 0.25 in

Product Description

The EATON 04Z-505-BG is a male SAE 37 degree JIC rigid fitting designed for hydraulic hose assemblies. It connects to hoses with a 0.25 inch inside diameter (hose size 4) using a 1/2-20 threaded connection. Constructed from steel, this straight fitting provides a secure, leak-resistant joint at the hose-to-component interface. The SAE J1176 standard governs its dimensional and performance requirements. At 1.84 inches overall length and 0.1 pounds, it is a compact, direct-replacement fitting used by hydraulic technicians and industrial maintenance professionals working on fluid power systems.

This fitting is suited for hydraulic hose assemblies requiring a straight male JIC termination. It is part of the Eaton Z Series and is intended for use in industrial and mobile hydraulic applications where a 37-degree flare connection is specified. The 9/16 inch hex size allows for standard wrench installation. Compatible hose series listed in the manufacturer data cover a broad range of Eaton hydraulic hose product families, making this a widely applicable replacement fitting for field and shop use.

Key Features

• Male SAE 37 degree JIC flare configuration for secure, leak-resistant connections
• Steel construction provides durability in high-pressure hydraulic service
• Straight rigid body simplifies inline hose termination
• 1/2-20 thread size with 9/16 inch hex for standard wrench torquing
• Meets SAE J1176 dimensional standards
• Part of the Eaton Z Series for broad hose family compatibility

Compatibility

Designed for use with the following Eaton hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system fully before removing or installing any fittings. Use a backup wrench on the hose end to prevent twisting the hose assembly during final tightening. Inspect threads and the 37-degree flare seating surface for damage before assembly.
