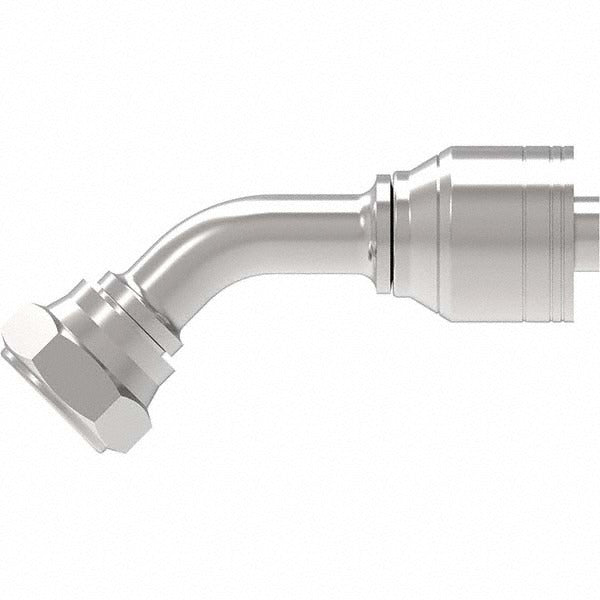

Eaton 04Z-44P-BG Bspp 60 Cone Female 45 Elbow Fitting

Product Description

The EATON 04Z-44P-BG is a BSPP 60 cone female 45-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic lines. Machined from steel, this fitting accepts a 4 mm hose size with a G 1/4-19 BSPP thread and provides a leak-resistant 60-degree cone seat connection. The 45-degree elbow geometry allows routing hoses at an angle in tight or confined plumbing layouts, reducing stress on the hose end and adjacent fittings. It is installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals working on fluid power circuits.

This fitting is suited for mobile hydraulic equipment, industrial machinery, and fluid power systems where BSPP threaded connections and a 60-degree cone sealing interface are required. The 45-degree elbow orientation supports clean hose routing in applications where straight fittings would cause excessive hose bend or interference. Its compact form factor with a 43/64-inch hex size makes it practical in crowded manifold or cylinder-port installations.

Key Features

• BSPP 60-degree cone female seating for leak-resistant, metal-to-metal sealing
• 45-degree elbow angle for flexible hose routing in confined spaces
• Steel construction for durability in high-pressure hydraulic environments
• G 1/4-19 BSPP thread size compatible with standard BSPP port connections
• Compact 43/64-inch hex for installation in tight locations
• Sold individually — single-piece packaging

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for fluid power systems requiring a BSPP 60-degree cone female 45-degree elbow connection at the 4 mm hose size and G 1/4-19 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with BSPP fitting assembly practices. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Apply appropriate thread sealant or ensure the cone seat is clean and undamaged before torquing; do not overtighten, as the 60-degree cone seat relies on metal-to-metal contact for sealing. Inspect the mating port thread and seat condition prior to installation to avoid cross-threading or seat damage.
