Eaton 04Z-10C-BG Hydraulic Hose Female Swivel Din 24 Fitting

Product Description

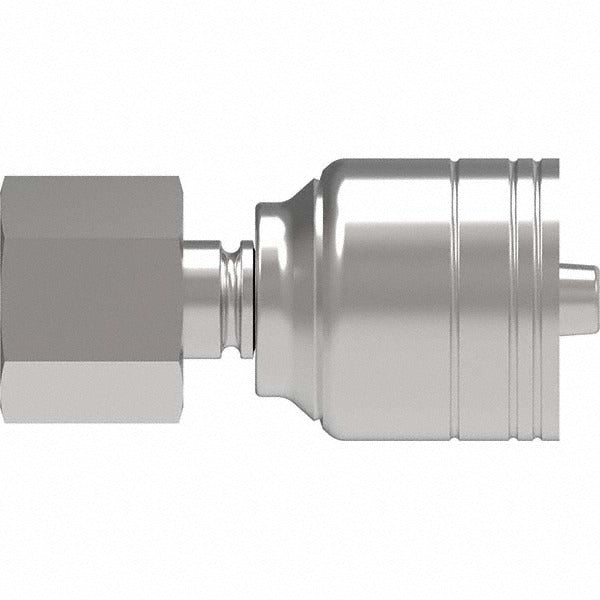

The EATON 04Z-10C-BG is a female swivel DIN 24 seat light hydraulic hose fitting machined from steel for use in metric hydraulic systems. It connects a 3/16-inch (4 mm) hydraulic hose to a port with an M16 x 1.50 metric thread using a DIN 24-degree cone seat for a reliable, leak-resistant seal. The swivel design allows the fitting to rotate during assembly, reducing hose twist and simplifying routing in tight installations. At 0.12 pounds, it is a compact, single-piece fitting suited for high-pressure hydraulic lines in mobile and industrial equipment.

This fitting is used in metric hydraulic plumbing applications where a 3/16-inch hose must terminate at an M16 x 1.50 threaded port. Typical installations include mobile machinery, construction equipment, agricultural implements, and industrial hydraulic power units. The DIN 24 light-series seat is commonly found on European-standard hydraulic components. A 3/4-inch hex wrench flat allows for standard torque wrench or open-end wrench assembly. Licensed hydraulic technicians and fluid power specialists are the primary installers.

Key Features

• Female swivel DIN 24-degree cone seat provides a metal-to-metal seal compatible with European hydraulic port standards
• Fits 3/16-inch (4 mm) hydraulic hose with M16 x 1.50 metric thread engagement
• Steel construction for durability in high-pressure hydraulic service
• Swivel body reduces hose twist during assembly and routing
• 3/4-inch hex flat for use with standard open-end or crowfoot wrenches
• Sold individually — sold as a single-piece unit

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems using DIN 24 light-series cone-seat ports with M16 x 1.50 thread and 3/16-inch hose connections.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Clean all mating surfaces and inspect the DIN 24 cone seat for damage before assembly. Do not over-tighten swivel fittings — consult the equipment manufacturer or fitting supplier torque specifications for the specific application.
