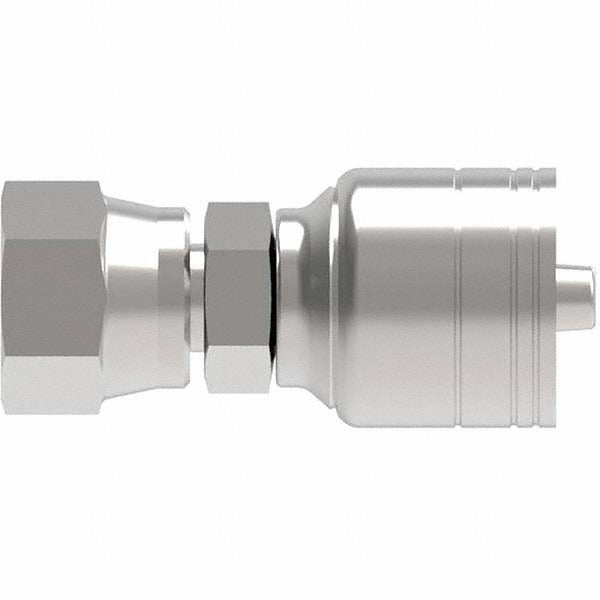

Eaton 04Z-054-BG Female Straight Pipe Swivel Fitting 1/4 in

Product Description

The EATON 04Z-054-BG is a female straight pipe swivel fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Manufactured from steel with an NPSM thread profile, this fitting accommodates a 1/4-inch hose inside diameter and a 1/4-inch hose outside diameter. The swivel design allows the hose to rotate during installation, reducing assembly torque and minimizing hose twist. At 1.88 inches in overall length and weighing 0.11 pounds, it is a compact, direct-replacement component. It conforms to SAE J1176 standards. Hydraulic technicians and fluid power mechanics are the primary installers of this fitting type.

This fitting is suited for use in hydraulic hose assemblies across industrial and mobile equipment applications. The 1/4-18 thread size and NPSM shaft type make it appropriate for low-to-medium pressure hydraulic circuits where a straight female pipe connection is required. It is part of the EATON Z series and is identified for use with a defined set of compatible hose series, making it a targeted OEM-style replacement rather than a universal adapter.

Key Features

• Female straight pipe swivel configuration reduces hose twist during assembly
• Steel construction for durability in hydraulic service environments
• NPSM thread profile on a 1/4-18 thread size for secure sealing
• Conforms to SAE J1176 standard
• Part of the EATON Z series hydraulic fitting line
• Compact overall length of 1.88 inches suits tight routing applications

Compatibility

Designed for use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with hydraulic hose assembly practices. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use appropriate thread sealant compatible with NPSM connections and the system fluid. Follow SAE J1176 assembly guidelines and inspect the completed assembly for leaks before returning the system to service.
