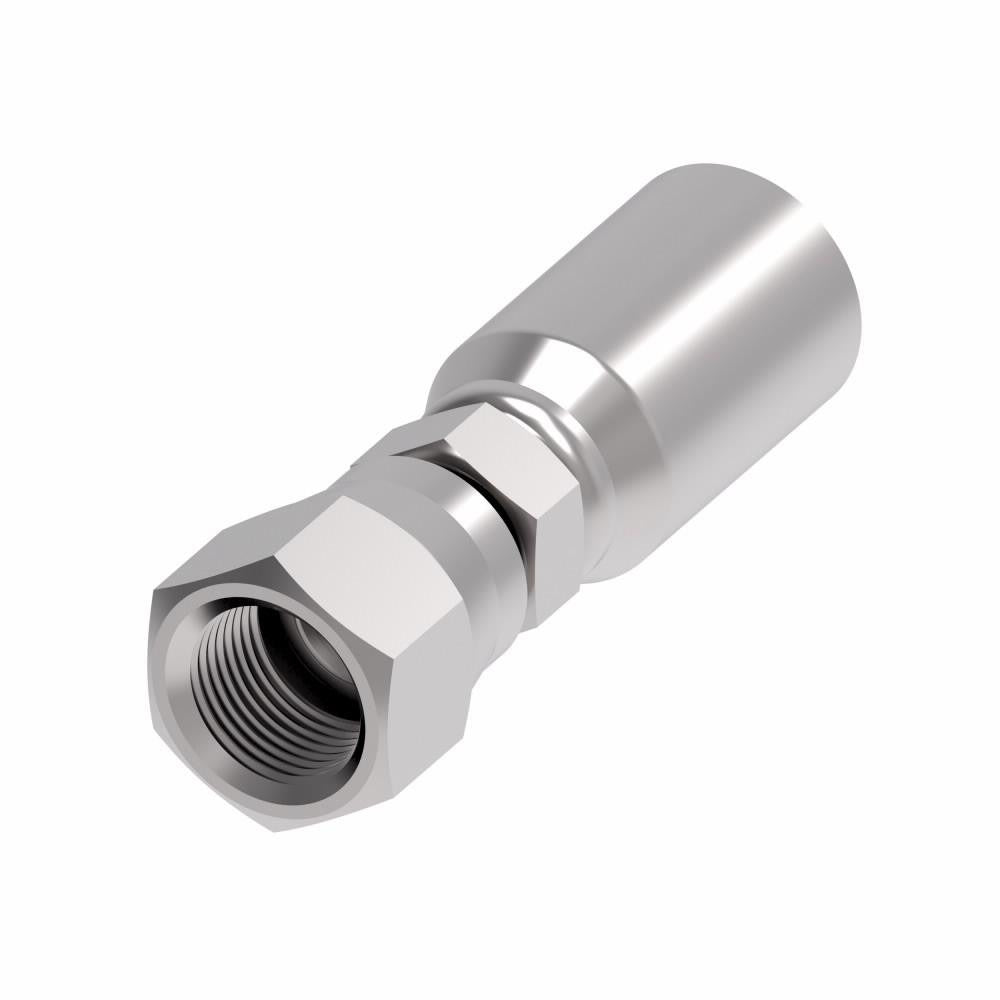

Eaton 04E-605 Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 04E-605 is a straight female swivel fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. It features a threaded SAE connection with a 1/2-20 thread size and is manufactured from steel for durability in demanding hydraulic environments. The fitting accommodates a 1/4-inch hose diameter, with a hose inside diameter of 0.25 inches and an outside diameter of 0.3125 inches. Rated for a maximum working pressure of 7,000 psi, this Series E fitting is installed by hydraulic technicians and fluid power specialists assembling or repairing hydraulic lines in industrial, mobile, and equipment applications.

This fitting is suited for use in hydraulic hose assemblies requiring a female swivel end connection in a straight configuration. It is compatible with specific EATON hose series including H009, H209, H243, H265, H275, H277, H285, H435, and H436. Typical installation scenarios include hydraulic systems on mobile equipment, industrial machinery, and fluid power circuits where a leak-free swivel connection is required at the hose end. The 1/2-inch hex size allows for standard wrench engagement during assembly.

Key Features

• Female swivel fitting in straight configuration for hydraulic hose assemblies
• Rated to 7,000 psi maximum working pressure
• SAE threaded connection with 1/2-20 thread size
• Fits 1/4-inch hose diameter (0.25 inches ID, 0.3125 inches OD)
• Steel construction for strength and pressure resistance
• 1/2-inch hex size for standard wrench engagement

Compatibility

Compatible with EATON hose series H009, H209, H243, H265, H275, H277, H285, H435, and H436 as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Use a calibrated torque wrench and follow the fitting manufacturer's assembly specifications for SAE threaded swivel connections. Inspect the swivel seat and thread engagement for damage before final assembly to ensure a leak-free connection.
