Easyio Easyio-FR-02 FR Relay Module, 3 IO

Product Description

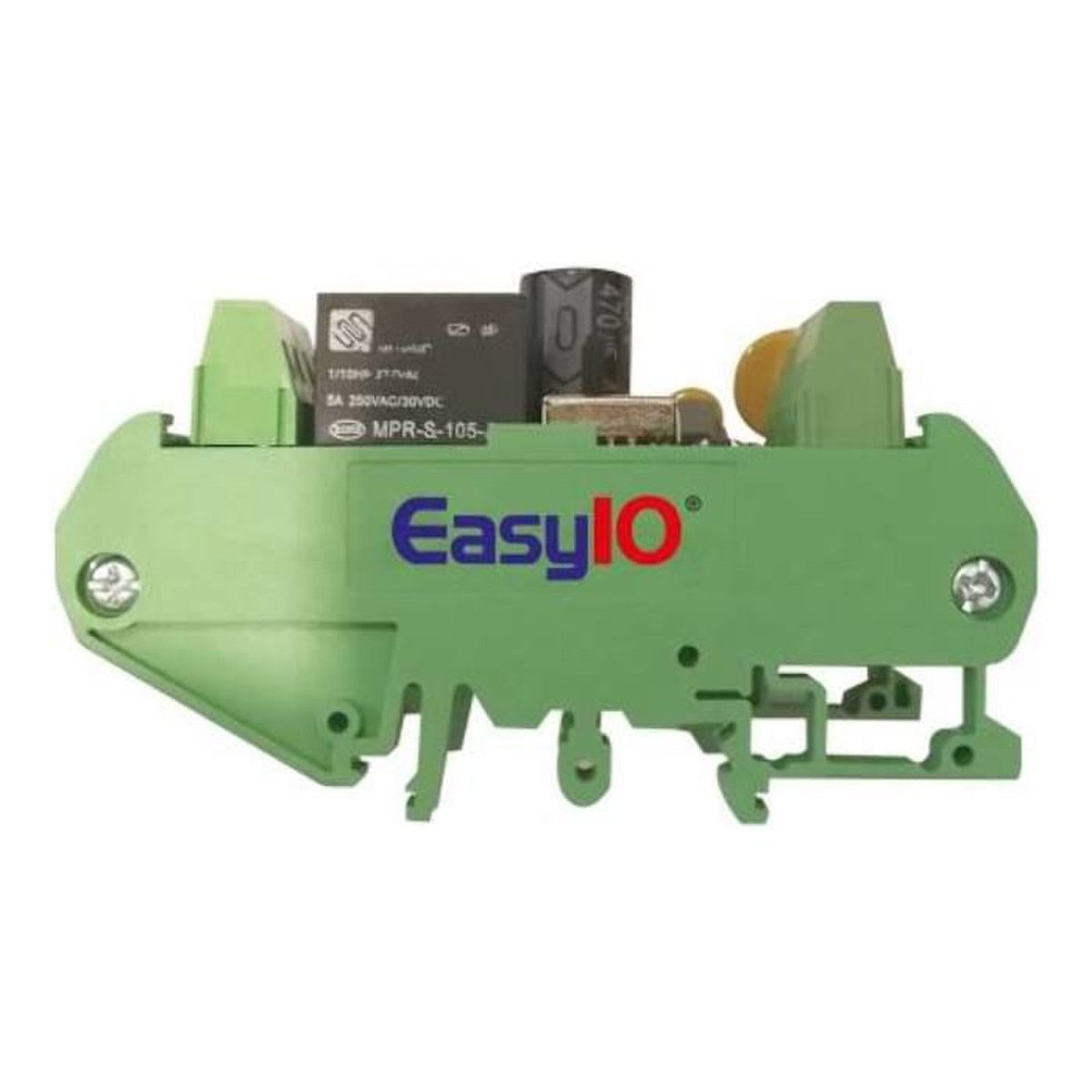

The EASYIO EASYIO-FR-02 is a relay module that can be mounted on a DIN rail. It allows 1 x AO coming from an EasyIO controller to provide floating control via two built-in relays. The modes 1 or 2 are selected by a jumper on the FR-02. Relays are rated for 5 million cycles.

• Allows 1 x AO to provide floating control via two built-in Relays.
• Relays rated for 5 million cycles.
• 1 × Analog input

Product Highlights

Relay module for floating control with 24 VAC/DC, 1 x AO, SPST N.O. dry contact, and DIN rail mount.

Product Information

Standard Information

• Brand: EASYIO
• Manufacturer Part Number: EASYIO-FR-02

Technical Specifications

• Power Supply: 24Vac(+/-5%), 20VA or 24Vdc(+15%/-15%), 15VA, Class 2
• Analog Input: Voltage 0-10 Vdc, Class 2
• Digital Outputs: 24V AC/DC 2A (48VA)
