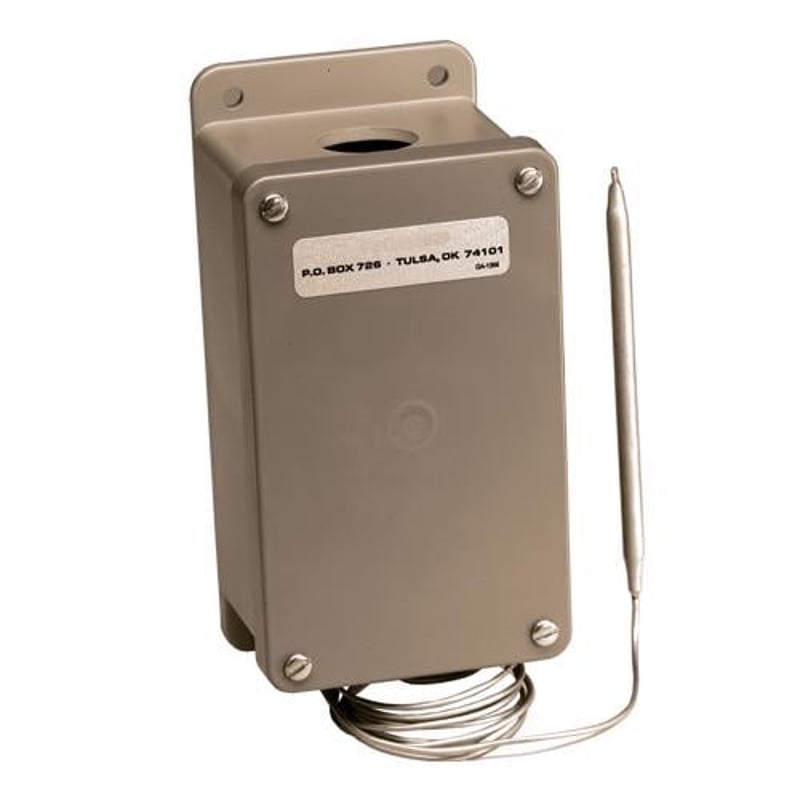

EasyHeat C4XC NEMA 4X 25AMP Thermostat

Product Description

The EasyHeat C4XC NEMA 4X thermostat, MPN C4XC, is a reliable solution for commercial pipe tracing controls. This snap action thermostat features a fixed setting at four degrees Celsius, which is equivalent to forty degrees Fahrenheit, and it has a differential of three degrees. It is ideal for applications like freeze protection in pipes.

• Amperage rating of twenty-two amps.
• Includes a five to six-foot capillary for installation.
• Built to NEMA 4X standards for harsh environments.

Product Highlights

This thermostat is designed for both indoor and outdoor locations, making it versatile for various installations.

Product Information

Standard Information

• Brand: EasyHeat
• Part Number: 127167

Technical Specifications

• Type: Snap Action Thermostat
• Poles: Single Pole
• Amperage Rating: 22 A
• Included Capillary: 5-6 Ft
• Standard Compliance: UL Listed and CSA Certified
• Application: Controls for use with pipe freeze protection
• Special Features: Suitable for indoor or outdoor locations, Weight 2 LBS
