Easyflex EFWC-034-SS-1010-24 3/4 FIP x FIP - 24 Long Replacement MPN

Product Description

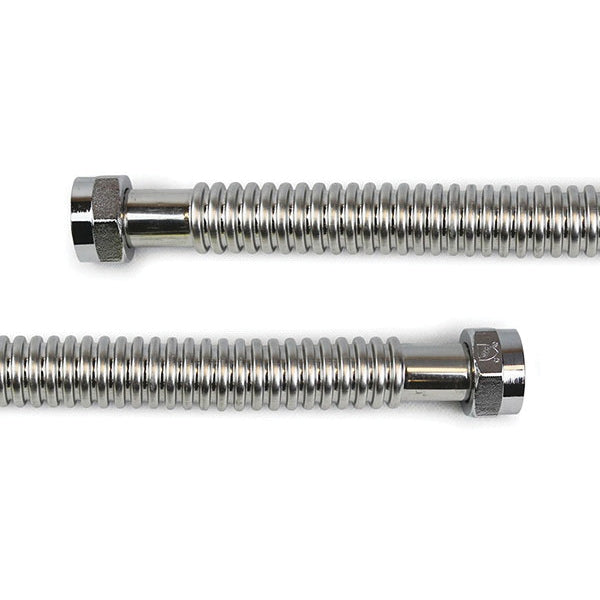

The Easyflex EFWC-034-SS-1010-24 is a stainless steel water heater connector featuring a three-fourth inch FIP x FIP connection. This connector is twenty-four inches long and designed for both safety and reliability in various plumbing applications.

• Maximum flexibility with annular corrugation
• Constructed from durable stainless steel 304
• Built-in dielectric sleeve to prevent galvanic corrosion

Product Highlights

This connector ensures a secure, leak-free connection with high performance standards.

Product Information

Standard Information

• Brand: Easyflex
• Part #: EFWC-034-SS-1010-24

Technical Specifications

• Connection Type: FIP x FIP
• Material: Stainless Steel 304
• Length: 24 inches
• Pressure Rating: 20 - 125 psig
• Temperature Rating: -40 to 180 deg F
• Gasket Material: High-Quality EPDM
• Minimum Bend Radius: 2.5 inches
• Standards/Certifications: ASME A112.18.6-2002, CSA B125.3-05, cUPC, ANSI/NSF 61
