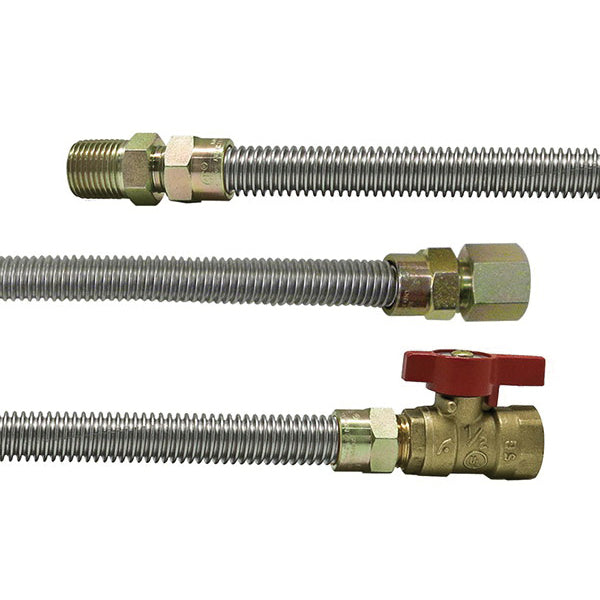

Easyflex EFGC-012-YE-1010-18 Flexible Connector

Product Description

The Easyflex EFGC-012-YE-1010-18 is a flexible gas connector designed for gas appliance applications. This product features yellow epoxy coated 304 stainless steel that provides resistance to corrosion. It measures one-half by one-half inch and has an overall length of eighteen inches.

• Made of corrosion-resistant stainless steel 304
• Flexible and durable design for various applications
• 100% leak tested for quality assurance

Product Highlights

This connector is suitable for gas appliance use, offering a reliable connection with a yellow epoxy coating for extra protection against corrosion.

Product Information

Standard Information

• Brand: Easyflex
• Material: 304 Stainless Steel

Technical Specifications

• Connection Size: 1/2 x 1/2 in
• Connection Type: MIP x MIP
• Inside Diameter: 1/2 in
• Outside Diameter: 5/8 in
• Length: 18 in
• Pressure Rating: 1/2 psi
• Temperature Rating: -40 to 150 deg F
• Standards/Certifications: cCSAus, ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27 certified
