Easy-Twist WWC-R-B NSI Red Winged Wire Conn 500 per Bag

Product Description

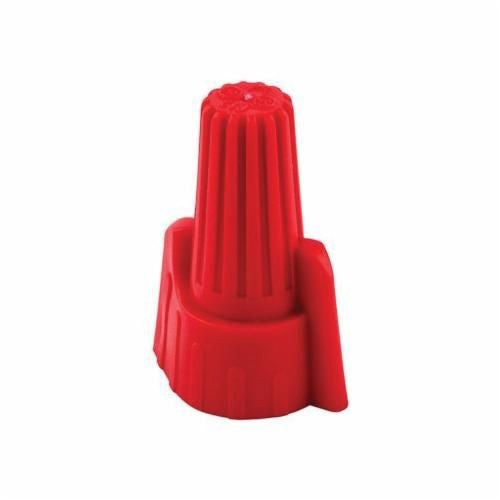

The EASY-TWIST WWC-R-B twist-on wire connector is the professional choice for forming quick, secure connections between copper wires. The specialized square wire spring grips in fewer twists, and the ribbed connector exterior offers a comfortable grip. It is designed for a voltage rating of 600V and a temperature rating of 105 degrees C.

• Wing type twist-on wire connector
• Suitable for copper wire sizes 18 to 8 AWG
• Thermoplastic shell for electrical insulation

Product Highlights

Provides quick and secure wire connections with a comfortable grip and reliable performance.

Product Information

Standard Information

• Brand: EASY-TWIST
• Manufacturer Part Number: WWC-R-B
• Country of Origin: China

Technical Specifications

• Type: Wing
• Voltage Rating: 600 V
• Wire Type: Copper
• Wire Size: 18 to 8 AWG
• Minimum Wire Combination Size: (3) #16
• Maximum Wire Combination Size: (5) #12
• Spring Type: Square Wire
• Shell Material: Thermoplastic
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Wire Range: 22 AWG – 6 AWG
• Material: Thermoplastic Shell
• Series: WWC
• Shell Style: Swept-Back Wing
• Application: For Splicing Wire
• Connector Type: Twist-on Wire Connector
• Wire Comb Min: 18 AWG
• Wire Comb Max: 8 AWG
