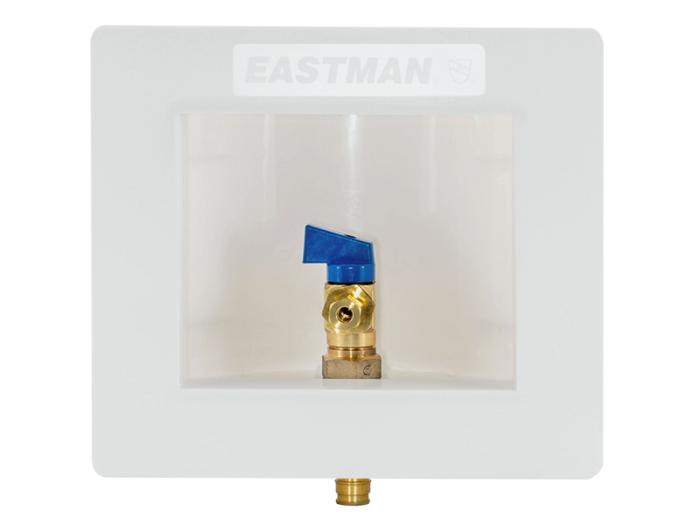

Eastman 60262 Ice Maker Outlet Box Quarter Turn Ball Valve 1/2 Inch Expansion PEX Connection x 1/4 Inch OD Compression

Product Description

The Eastman 60262 Ice Maker Outlet Box simplifies plumbing projects by providing a safe water supply installation for ice makers, refrigerators, and water dispensers. Designed for recessed residential applications, this unit features a durable quarter-turn brass ball valve for reliable shut-off. It is UPC approved and lead-free compliant, ensuring safety and quality. The box operates efficiently within a working temperature range of 34 degrees F to 180 degrees F and handles a working pressure of 125 PSI. It includes a 1/2 inch Expansion PEX inlet and a 1/4 inch OD compression outlet.

• Provides a safe water supply installation for ice makers, refrigerators, and water dispensers in recessed residential applications.
• Features a durable 1/4-turn brass ball valve, support bracket, and faceplate cover for complete installation.
• UPC approved and lead-free compliant, designed to operate between 34 degrees F and 180 degrees F with a working pressure of 125 PSI.

Product Highlights

Pre-assembled ice maker outlet box with 1/2 inch Expansion PEX inlet and 1/4 inch OD compression outlet, ensuring reliable water supply.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 60262

Technical Specifications

• Color: White
• Manufacturer: EZ-FLO International Inc.
• Product Type: ICE_MAKER
• Operating Temperature Range: 34 degrees F to 180 degrees F
• Working Pressure: 125 PSI
• Rough Opening Dimensions: 5-3/4 W x 4-7/8 H x 3-1/2 D inches
• Face Plate Dimensions: 8-1/4 W x 7-5/16 H inches
• Number of Items: 1
• Inlet Connection: 1/2-inch expansion PEX
• Outlet Connection: 1/4-inch outer diameter compression
• Compliance: Lead-free law, UPC approved
• Approvals & Listings: AB1953, CUPC
• Application: Recessed residential
• Product Dimensions: 7.25" x 8.25" x 3.5"
