Eastman 60258 Ice Maker Outlet Box with Hammer Arrestor 1/2 in. Expansion PEX (F1960)

Product Description

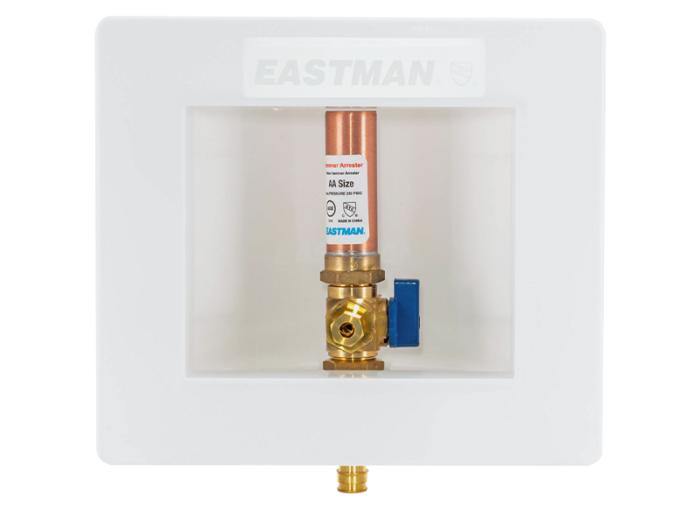

The Eastman 60258 icemaker outlet box with hammer arrestor provides a safe water supply installation for refrigerators, water dispensers, and ice makers. It features a one-piece box and flange design, pre-installed support bracket, and a 1/4-turn ball valve for shut-off. Designed for recessed residential applications, it operates between 34 F (1 C) and 180 F (82 C) with a working pressure of 125 psi. It complies with lead-free law and is UPC approved.

• Provides a safe water supply installation for refrigerators, water dispensers, and ice makers
• Built with a one-piece box and flange design for recessed residential applications
• Includes a 1/4-turn ball valve for shut-off and an integrated hammer arrestor

Product Highlights

This Eastman 60258 ice maker outlet box ensures a secure water connection with a hammer arrestor and 1/4-turn ball valve, suitable for residential use.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 60258

Technical Specifications

• MPN: 60258
• Inlet Connection: 1/2-inch expansion PEX
• Outlet Connection: 1/4-inch outer diameter compression
• Application: Ice Maker
• Operating Temperature Range: 34 F (1 C) to 180 F (82 C)
• Working Pressure: 125 psi
• Compliance: Lead-free law, UPC approved
• Approvals & Listings: AB1953, CUPC
• Model Name: Eastman 60258
• Unit Count: 1 Piece
• Manufacturer: EZ-FLO International Inc.
• UPC: 091712008200
• Material: PEX
• Product Type: Ice Maker Outlet Box
